60 Series T0
A timeless tractor
The model 8860 two-or four-wheel drive is considered the workhorse of the Landini’s stable: never tamed and always raring to go, they are ideally suited for all-round use. Featuring a simple, economy–driven design, the 8860 tractor deliver excellent performance and functionality for maximum reliability and extended life. The new environment-friendly Perkins 1104A series “TIER 0” 4-cylinder engines offer high fuel efficiency, low noise and reduced emissions while delivering a high torque backup. The driver’s seat is equipped with a fully adjustable sprung seat to maximise the driving comfort. The ergonomically-arranged controls make the operator’s work easier and more comfortable. The forward tilting hood gives easy access to the engine for maintenance operations.
Maximum reliability and extended life
Engine
4,4 / 4
Power
83.6
Transmission
Reverse shuttle and base gearbox
The four-post ROPS can be equipped with a sun canopy. The model 8860 can be equipped with three different transmission options for maximum versatility and productivity.

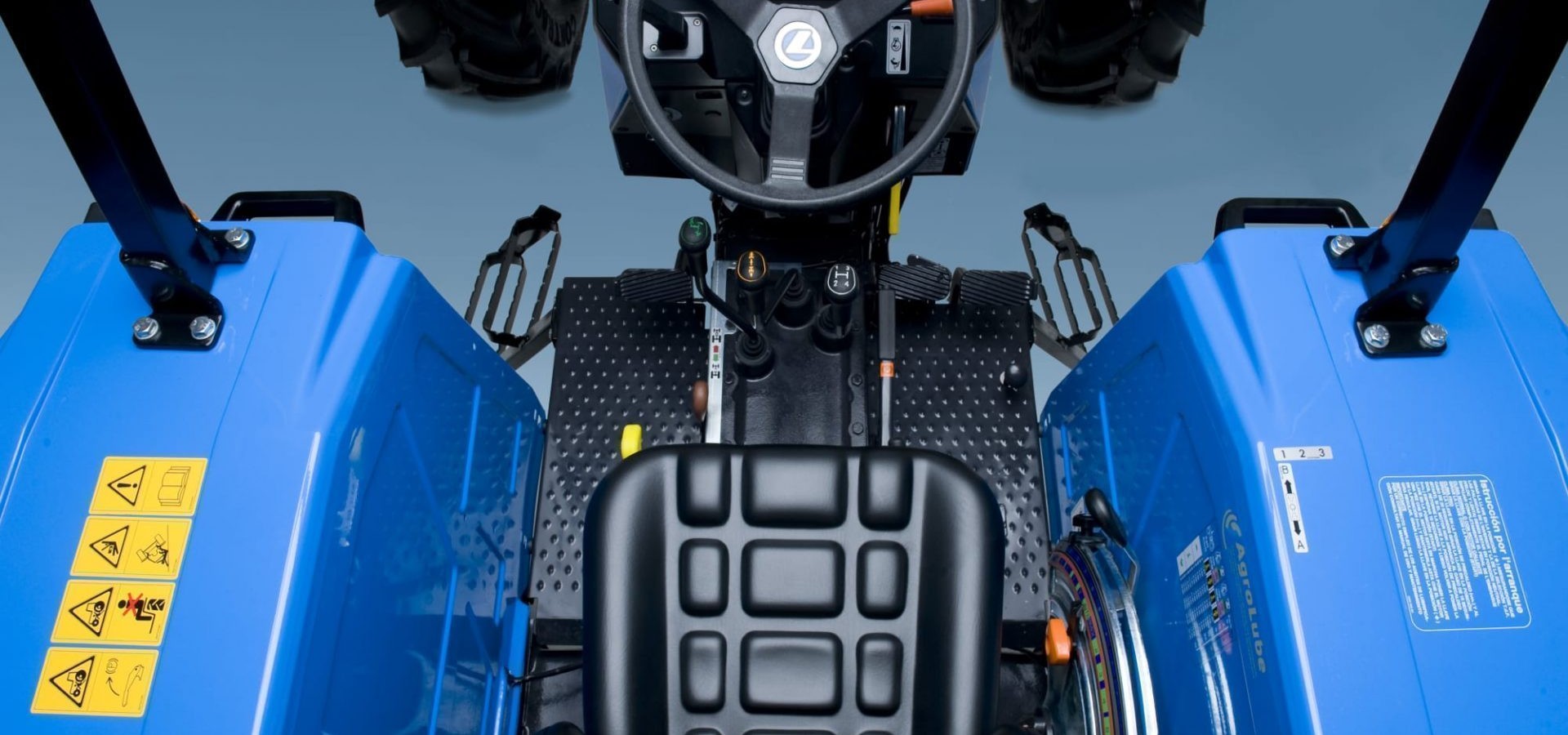

Ample and comfortable driver’s seat
The driver’s seat is mounted on an ample platform and equipped with a fully adjustable sprung seat to maximise the driving comfort.
Perkins 1104A series “TIER 0” 4-cylinder

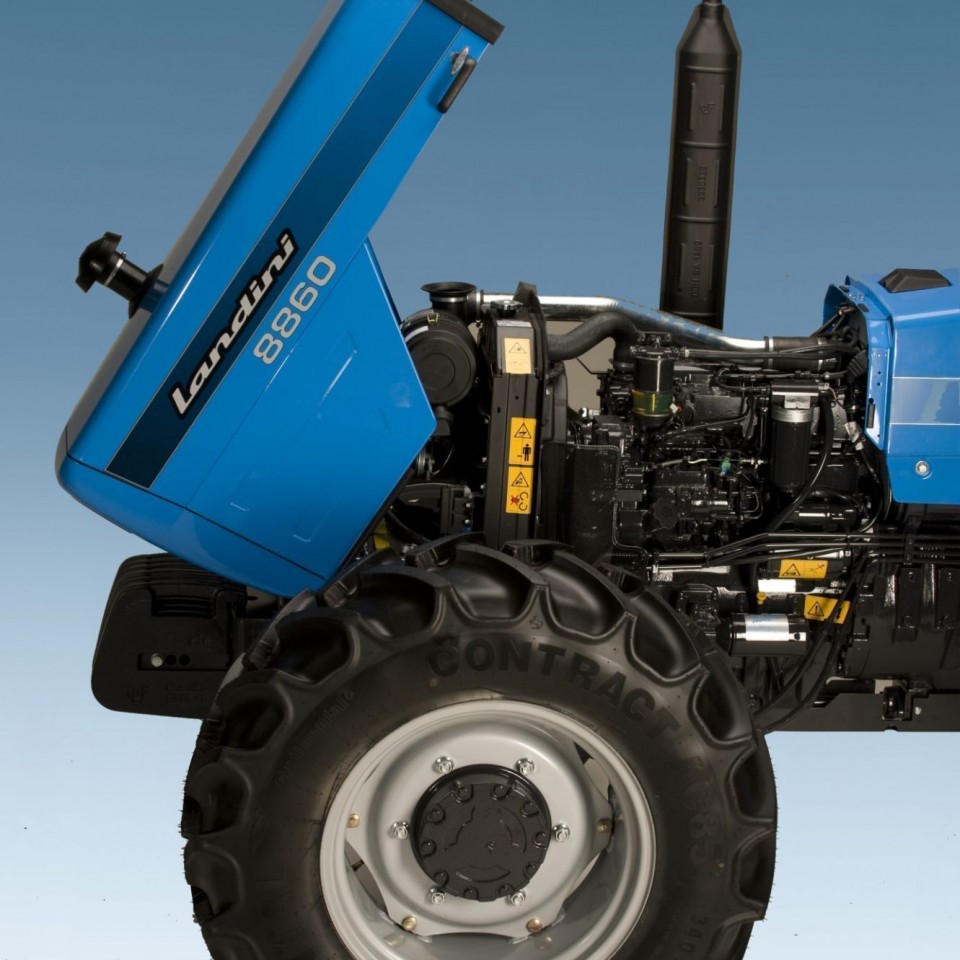

The 60 Series tractors (8860 model) are equipped with the new environment-friendly Perkins 1104C 4-cylinders engines. The new engines deliver 74 and 81.6 HP (ISO) respectively, while offering high torque backup, improved fuel economy, low noise and reduced emissions. The forward tilting hood provides easy access to the engine for routine service and maintenance.
| 8860 | |
|---|---|
| Direct-injection Perkins engine | 1104A-44 |
| Max power ISO hp/kW HP/kW | 81,6 / 60 |
| Cylinders / Displacement cm3 | 4 / 4400 |
| Rated speed rpm | 2200 |
| Max Torque Nm | 292 |
| Fuel tank capacity Lt | 86 |
Three modular transmission options

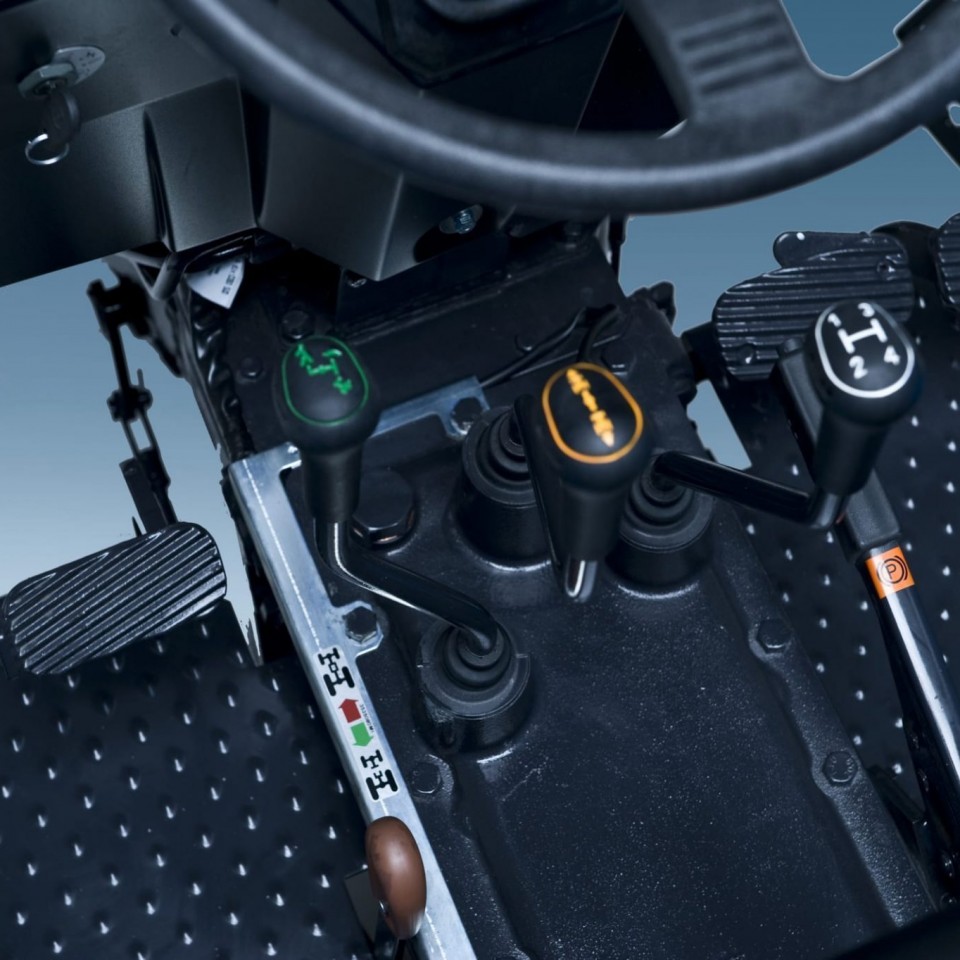

The base transmission features a four-speed, three-range gearbox with reverse which provides 12FWD+4REV speeds. The second option includes a power shuttle which allows the driver to reverse all speeds of the base gearbox thus obtaining 12FWD+12REV speeds. The third option with creep speed unit provides a total of 24FWD+12REV speeds. The centrally-located power shuttle lever allows the driver to reverse all gears and engage the creep speed option with maximum comfort.
| 8860 | |
|---|---|
| rear tyres 4WD | 18,4 - 30 |
| A total length without ballast in. (mm) | 150 (3810) |
| B minimum width in. (mm) | 73,6 (1870) |
| C wheelbase 2WD/4WD in. (mm) | 92,1 / 91,2 (2340 / 2316) |
| D height at steering wheel in. (mm) | 67,7 (1720) |
| E max ground clearance 4WD in. (mm) | 19,9 (430) |
| F height to safety frame in. (mm) | 102 (2590) |
| F height at top of cab in. (mm) | 102 (2590) |
| weight (without ballast) 4WD lb. (Kg) | 6923 (3147) |
