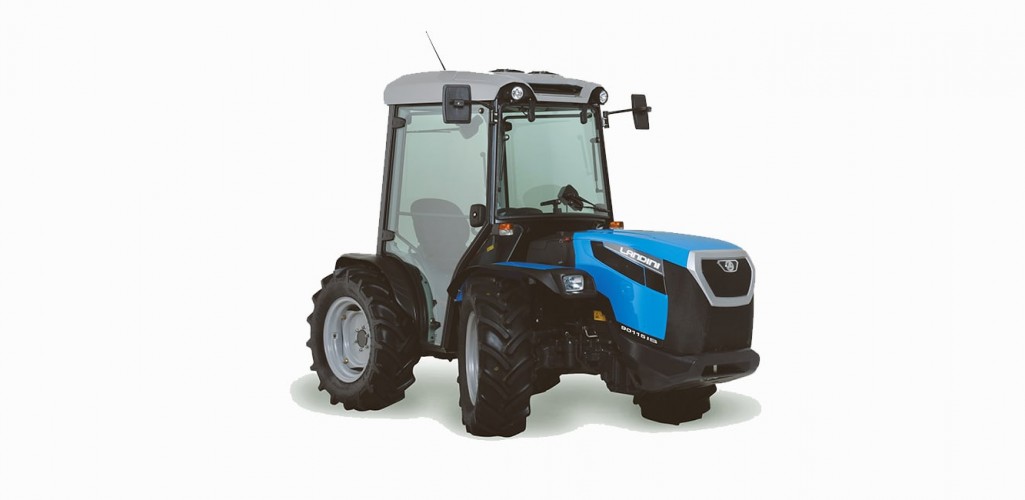

7000-9000 Series, powerful and reversible for maximum flexibility

The 7000-9000 Series equal-wheel tractors are available in two versions: IS with front wheel steering and AR with articulated steering. Both versions come standard with reversible driving position and are available in either ROPS or cab configuration.

Ultimate versatility

Engine

2,9 / 4

Power

70 76 95 102

Transmission

Synchro Shuttle

The 7000-9000 tractors sport a fresh new look with a restyled hood and an updated fuel tank which now boasts a capacity of 58 litres. The driver’s station has also been redesigned with an all-new digital instrumentation cluster.

Contact us

Driving position

Both versions come standard with reversible driving position and are available in either ROPS or cab configuration. The driver’s station has also been redesigned with an all-new digital instrumentation cluster.

Deutz Tier 4i Engines

The two models in the range, the 90105 and 90115, are powered by new Deutz TCD L4 engines meeting the Stage 3B / Tier4i emission regulations. Equipped with four valves per cylinder, turbocharger and aftercooler, these new 2.9L, 4-cylinder engines deliver 95 and 102 hp.

7075 IS-AR 7085 IS-AR  90105 IS-AR  90115 IS-AR
Constructor DEUTZ DEUTZ DEUTZ DEUTZ
Model TCD L4 TCD L4 TCD L4 TCD L4
Max. power (ISO rating) HP / kW 70/52 76/56 95 / 70 102 / 75
Max. torque 272 375 400 410
Displacement cm3 2900 2900 2900 2900
No of cylinders 4 TA 4 TA 4 TA 4 TA



Contact us

Standard gearbox 16FWD + 16REV

The 7000-9000 Series offers standard a 16/16 transmission with synchro shuttle and creeper. max. speed 40 km/h.

The hydraulic system

The hydraulic system provides a flow rate of 50 + 31 l/min and operates two standard and two optional remote valves at the rear. A joystick controller to operate the remote valves is available as an option. The rear threepoint hitch is Category II and provides a lift capacity of 2300 kg. The hitch can be equipped with fixed or extendable lower links and with fixed or adjustable quick-release couplings with integral sideshift.

DIMENSIONS AND WEIGHTS

7075 IS-AR 7085 IS-AR 90105 IS-AR 90115 IS-AR
Wheelbase     mm 1495 1495 1495 1495
Min/Max Lenght  mm 3737 3737 3737 3737
Total Weight  Kg 2285 (IS) - 2205 (AR) 2285 (IS) - 2205 (AR) 2285 (IS) - 2205 (AR) 2285 (IS) - 2205 (AR)
