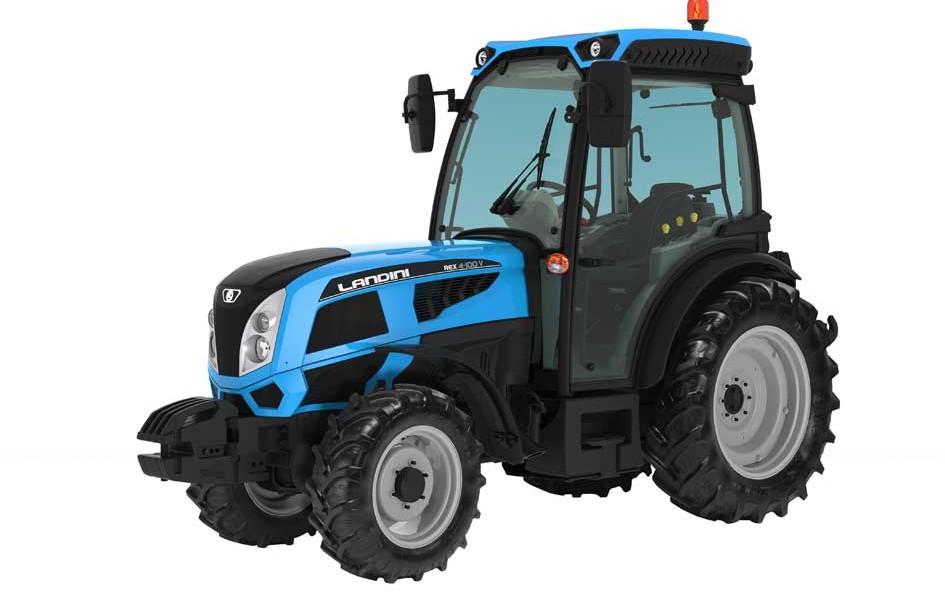

Landini REX 4 V (CAB)

Main features

CYLINDERS
4
POWER
70 - 76 - 90 - 95 - 102
TRANSMISSION
Synchro Shuttle,Power Shuttle and Powershift

Rex 4 V,undisputed king of the Vineyard

New styling, new components and new features make the new “REX 4” V series a much wider choice of models for all specialist tasks. As well as the three versions for orchards, FGTGE, also for the V Series, there are numerous variants and options allowing customers to optimize their choice to suit their requirements and ensure low cost of ownership during its working life. All models of Rex4 V series will be available with a modern and functional air conditioned cab, in which operators can work in safety and comfort. The tractors stylish new look and entirely redesigned cab provide the operator with a new working environment, offering improved vision, more functionality and more precise controls that make front or rear implement operation easier and quicker and, true to form, extremely high-levels of finish ensure the utmost in comfort. When used for spraying operations, the cab is also available with Protection class 4, guaranteeing total protection for the operator in a pressurized environment monitored by sensors. The Vineyard version has additional models and options, including a dedicated High Pivot axle with increased swing to facilitate steering and undulating ground.

Engines Deutz Tier 4 interim

The innovations incorporated into the REX 4 V Series start with the engine, a performance-oriented, reliable 4-cylinder 2.9-liter Deutz Stage 3B (TCD L4) equipped with DOC. An Engine Memo Switch can memorize the engine speed for operator convenience. Maximum power is developed at 2200 rpm and ranges from 70 HP to 102 HP with up to 5 models per version.

REX 4-070 VREX 4-080 VREX 4-090 VREX 4-100 VREX 4-110 V
Deutz Stage 3B/Tier 4 Interim2,9 TCD L42,9 TCD L42,9 TCD L42,9 TCD L42,9 TCD L4
Max. power (ISO) [HP/kW]70/5276/5690/6695/70102/75
Max. torque [Nm]272300378400410
Displacement/N° of cylinders cm32900/4TA2900/4TA2900/4TA2900/4TA2900/4TA



VERSATILE TRANSMISSION TO SUIT EVERY NEED

Argo Tractors produce the new transmission, with mechanical or hydraulic reverse shuttle, 4 speed gears and 3 ranges to which two options can be added: Hi-Lo and High-Medium-Low, and finally creeper. Models can be 2 or 4 wheel drive. The new REX 4 V Series offers a wide choice of power take-offs either mechanical or hydraulic versions, depending on the transmission, and with two or four speed (540, 540 Eco, 1000 and 1000 Eco).

Lounge Cab

The tractors stylish new look and entirely redesigned cab provide the operator with a new working environment, offering improved vision, more functionality and more precise controls that make front or rear implement operation easier and quicker and, true to form, extremely high-levels of finish ensure the utmost in comfort. When used for spraying operations, the cab is also available with Protection class 4, guaranteeing total protection for the operator in a pressurized environment monitored by sensors.

INNOVATIVE HYDRAULIC SYSTEM FOR MAXIMUM FLEXIBILITY

The REX4 comes with a variety of hydraulic options and configurations to offer farmers tailored solutions for their applications. The hydraulic system of the REX4 range comes standard with a double pump that supplies 50 l/min to the rear hitch and remotes and 28 l/min to the steering system. Optionally, it can be equipped with a triple pump that provides a flow rate of 44+41+28 l/m to operate, respectively, the rear hitch and remotes, the front remotes and the steering system. The tractor can be equipped with up to seven remote valves, four at the rear and three at the front. Available options include three electrohydraulic front remotes, a flow selector to control multiple outlets with a single control and a flow divider to regulate the flow rate to the remotes. The V models can be equipped with rear hydraulic stabilizers which control opening and closing of the lower links via two simple push-buttons. This function can be useful when attaching implements or when hitch adjustment during inter-row operation is required.

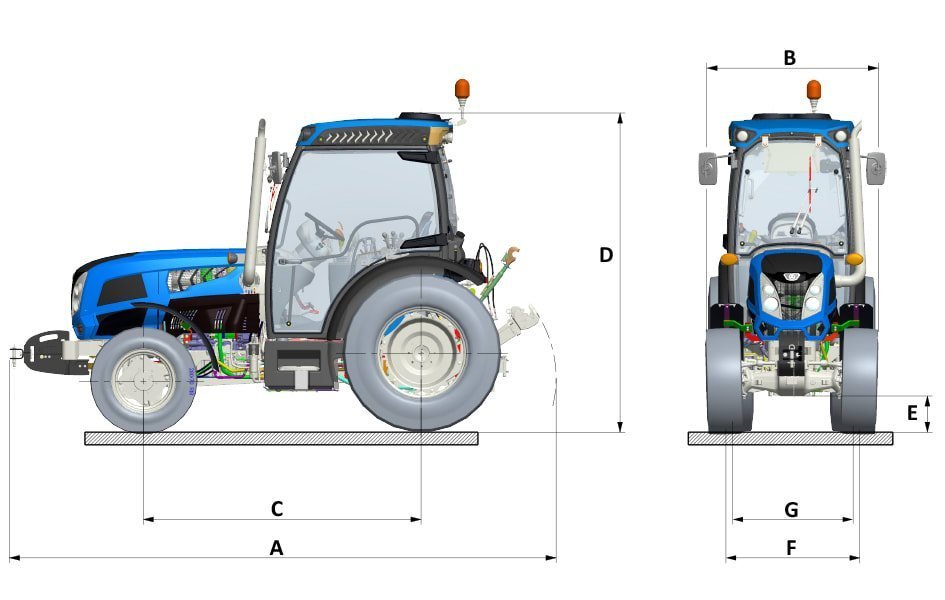

DIMENSIONS AND WEIGHTS

REX 4-070 VREX 4-080 VREX 4-90 VREX 4-100 VREX 4-110 V
Min. Width mm10001000100010001000
Wheelbase 4WD mm21402140214021402140
Weight 4WD Without weights  Kg28002800280028002800
