2 Series STD/GE

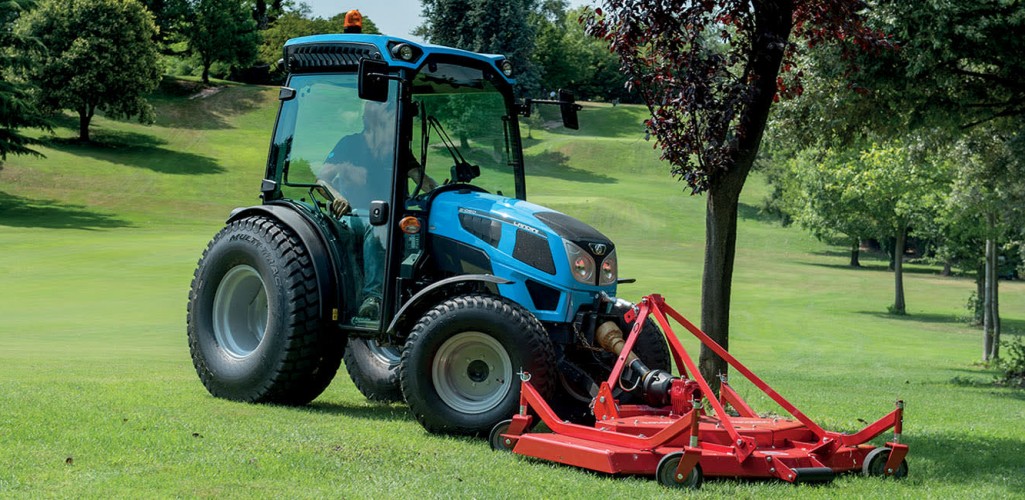

2 Series a worthy successor to the Mistral
Launched to replace the existing Mistral range, the 2 Series are compact nimble tractors ideal for easy manoeuvring in tight spots. The hood and cab roof have been completely redesigned with a modern look matching the new Landini family styling.
Compact nimble tractors ideal for easy manoeuvring in tight spots
Engine
1,9 / 4
2,1 / 4
Power
44 51
47.5
Transmission
Synchro Shuttle
The 2 Series comes in two models: STD with the choice of either cab or platform, and GE only available in platform version. On the GE model, the design of the front axle and rear final drives allows the driving position to be lowered by 95 mm as compared to the STD version; this results in better performance in tight and low spaces such as overhead trellis vineyards and greenhouses.
Driving position
Located on an iso-mounted platform, the driving position impresses with its ergonomic design and easy-to-use, logically-arranged controls. Restyled with a modern look, the new four-post cab offers enhanced all-round visibility for easy manoeuvring and safe implement operation. Featuring improved pressurization, lower noise levels and a new, more efficient air-conditioning system, the cab of the 2 Series tractor raises driver comfort to a whole new level.
Yanmar Engines
The 2 Series tractors are powered by Yanmar TNV four cylinder naturally aspirated and turbocharged engines with power ratings of 44, 47.5 and 51 hp. These engines deliver high horsepower and torque backup while ensuring quiet, eco-friendly performance and excellent fuel economy. Equipped with exhaust gas recirculation system (EGR), the 16-valve four-cylinder turbo engine fitted on the 2-055 model delivers superior performance. Fully redesigned to reflect the new Landini family styling, the hood opens wide to provide easy access to the engine compartment for routine service and maintenance.
| 2-045 | 2-050 | 2-055 | |
|---|---|---|---|
| Yanmar Tier 3 | 4TNV84-KLAN | 4TNV88-KLAN | 4TNV84T-2XLAN |
| Max. power ISO hp/kW | 44/32 | 47.5/35 | 54.2/39.9 |
| Max. torque Nm | 129 | 141 | 159.5 |
| Cylinders / Displacement cm3 | 1995 / 4 / 8 | 2189 / 4 / 8 | 1995 / 4 TURBO / 16 |
The standard gearbox offers 12 forward and 12 reverse speed
The standard gearbox offers 12 forward and 12 reverse speeds and can be optionally equipped with a creeper unit to provide 16 forward and 16 reverse speeds. The synchro shuttle allows for smooth shifting between forward and reverse. Instruments are intuitive and easy to read and controls are ergonomically arranged on the driver’s sides for maximum comfort and ease of operation.
Mechanical power lift and auxiliary valves, ideal for this power range
The hydraulic system provides a maximum flow rate of 12,5 GPM (47,7 litres/min). The mechanical power lift with Cat. 1 three-point linkage can lift up to 2640 lb. (1200 kg), the system features three simple- and double-acting auxiliary valves. The controls are located in a comfortable and ergonomic position at the driver’s right for fingertip operation.
DIMENSIONS AND WEIGHTS
| 2-045 STD | 2-045 GE | 2-050 STD | 2-050 GE | 2-055 STD | 2-055 GE | |
|---|---|---|---|---|---|---|
| Height to steering wheel (mm) | 1312 | 1218 | 1312 | 1218 | 1312 | 1218 |
| Wheelbase 4WD (mm) | 1760 | 1760 | 1760 | 1760 | 1760 | 1760 |
| Weight Platform/Cab W/O ballast Kg | 1460 | 1610 | 1460 | 1610 | 1460 | 1610 |
