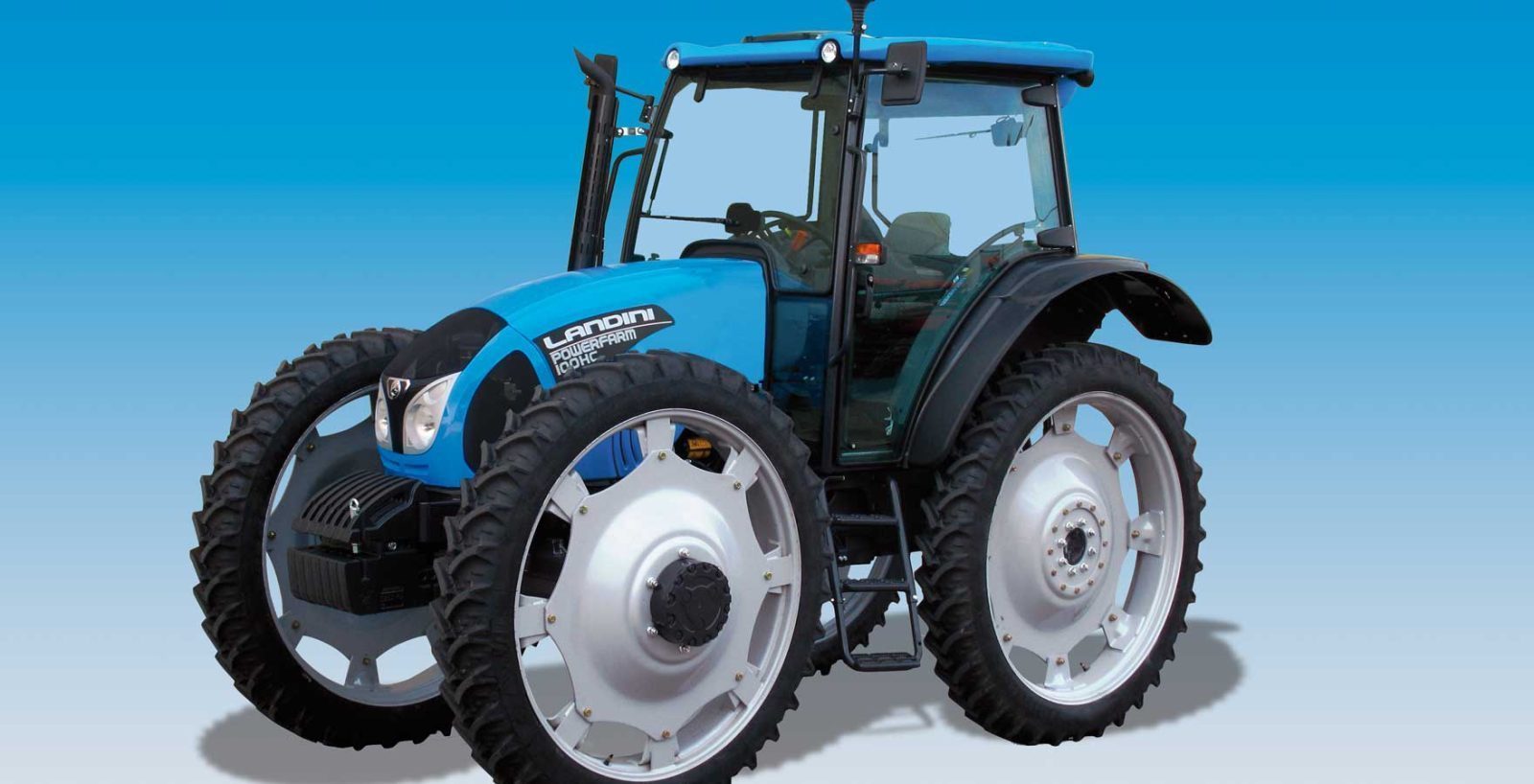

Powerfarm HC the essence of modernity
The Powerfarm also offers a high-clearance version (HC) for both the two- and four-wheel drive models. Rotating the rear drop-down final drives and using special front axles and tall, narrow tyres result in higher belly clearance, making this tractor ideal for working in specialty crops such as rice fields and inter-row crops.
4,4 / 4
83, 92.5, 102
Mechanical Reverse Shuttle, Speed Four

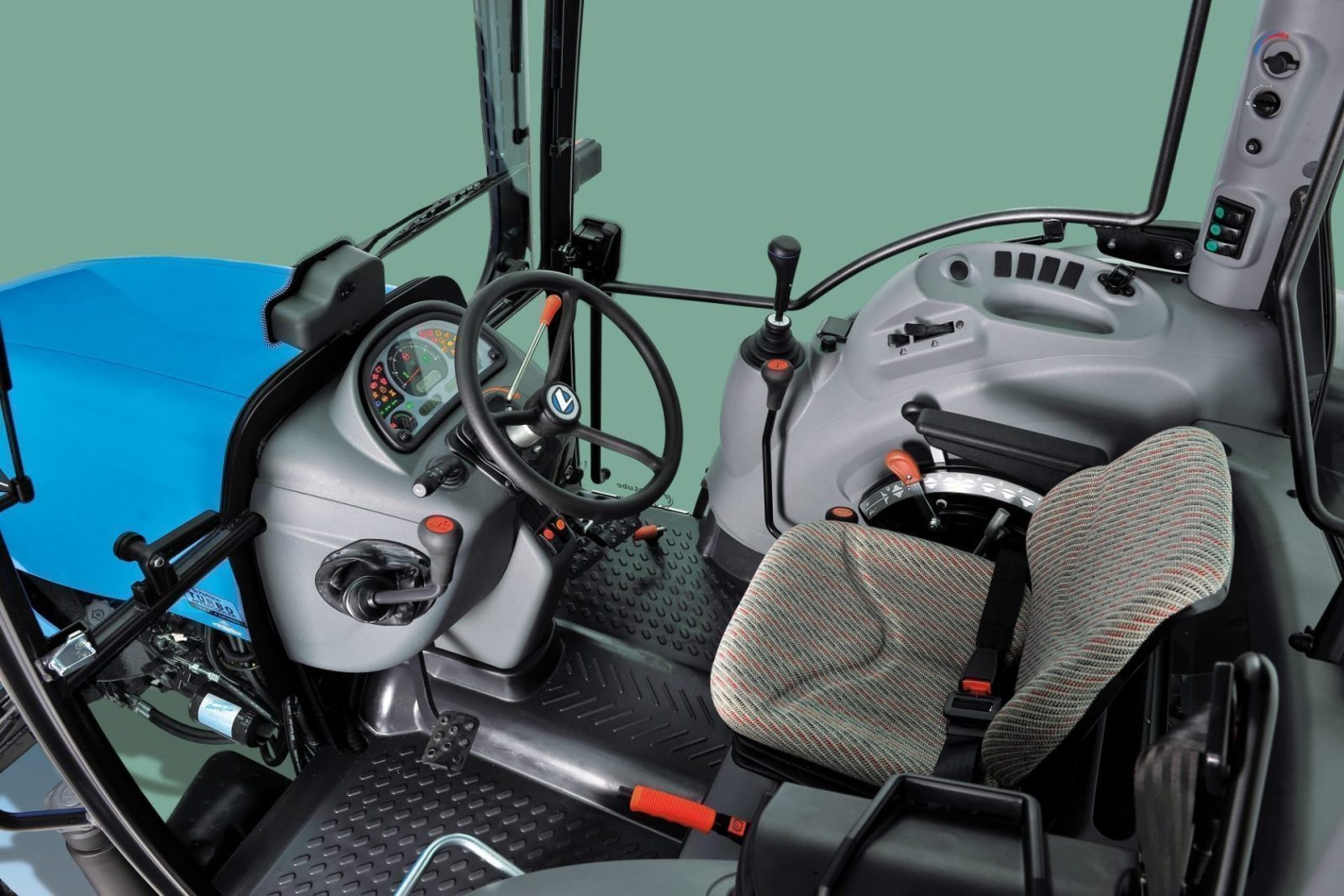

The fully-glazed Total View cab with its roof-mounted air conditioning system and logicallyarranged controls offers the operator a functional and comfortable working environment for maximum ease of operation. Offering a wide choice of models and versions, the Powerfarm range is designed for productivity, versatility and comfort.
The Powerfarm tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. Featuring an advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency, these engines combine high power and torque levels with low running costs. The Powerfarm 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO.
|TIER 3||TIER 3||TIER 3|
|Perkins direct-injection engine||1104D-44T||1104D-44TA||1104D-44TA|
|max. power (ISO), hp/kW||83/61||92,5/68||102 / 75|
|max. torque, Nm||352||363||416|
|nr. of cylinders||4 Turbo||4 turbo aftercooler||4 turbo aftercooler|
|fuel tank capacity, Lt||102||102||102|

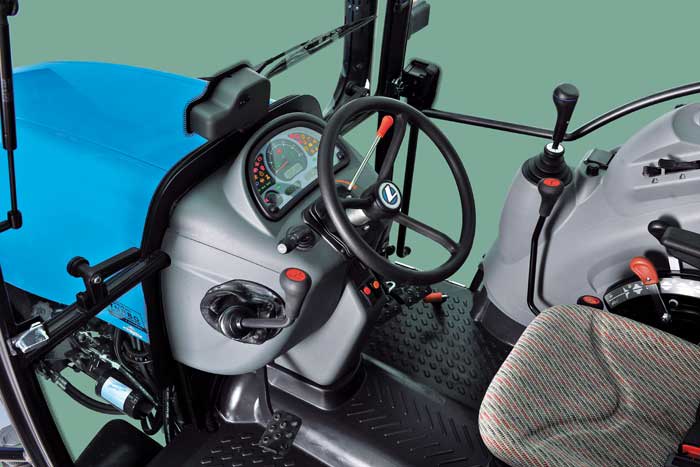

The synchro shuttle transmission offers four gears in three ranges providing 12 speeds forward and 12 reverse. A 30 km/h transmission is available with either an underdrive (standard on the 2WD version) or a creep speed option. An overdrive option with 40 km/h maximum speed is also available for the 4WD models.
|A length (with ballast), in. (mm)||162.8 (4136)||162.8 (4136)||163.8 (4160)|
|B min. width, in. (mm)||81.2 (2063)||81.2 (2063)||81.2 (2063)|
|C wheelbase 2WD/4WD,(mm)||2341/2316 2255/2230||2341/2316 2255/2230||2365/2340 2255/2230|
|D height over cab, in. (mm)||100.4 (2550)||100.4 (2550)||100.4 (2550)|
|E ground clearance 4WD, in. (mm)||17.8 (453)||17.8 (453)||17.8 (453)|
|weight 4WD (w/o ballast) + 150kg cab.(kg)||3460||3460||3500|
