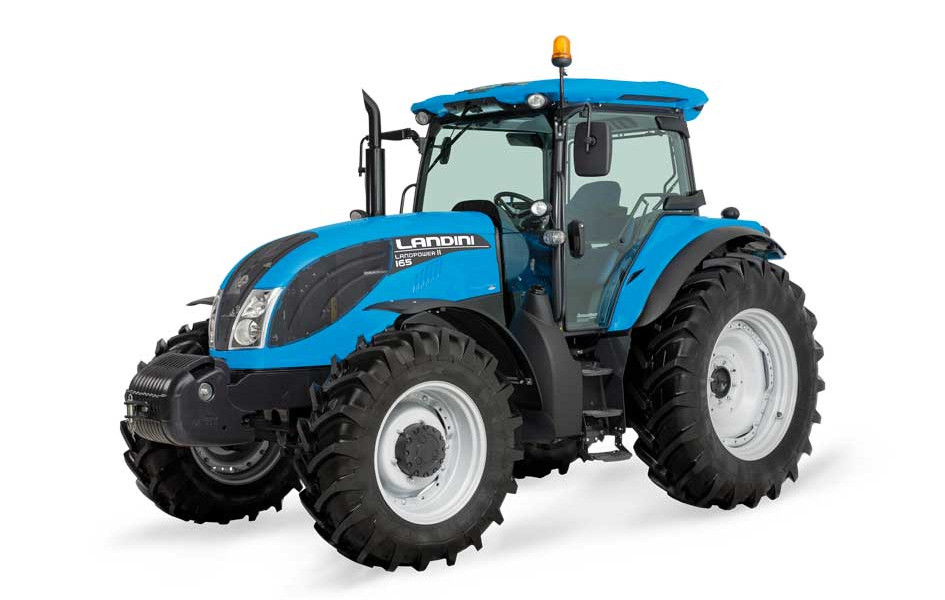

Landini Landpower T3 Cab

125 - 135 - 145 - 165

Main features

CYLINDERS
6
POWER
117, 133, 141, 157
TRANSMISSION
Synchro Shuttle

Reliability at your service

The new Landpower tractor range comes to the market after extensive restyling. Updates include a new “Master Class” four-post cab with large glazed areas and ergonomically-arranged controls for the cab version and a revamped platform with newly designed dashboard and controls for the platform version. The sloping line of the hood reflecting the Landini family style, along with the new cab and platform design, provides unobstructed view in all directions, thereby improving manoeuvrability and driving comfort. The new Landpower offers a choice of two transmissions: a Speed Six mechanical transmission (18FWD+18REV) for the (Techno version) and a T-Tronic electronic transmission (54FWD+18REV) with Declutch control and Reverse Power Shuttle for the (Comfort version). Both transmissions can be optionally equipped with a creeper, making this tractor equally suited for both field work and road transport operations. The PTO with wet multi-disc clutch is electro-hydraulically operated via a push-button. The hydraulic system delivers a maximum flow rate of 125 l/min and the power lift with twin assistor rams provides a lift capacity of up to 8400 kg. The system also features five auxiliary control valves for the maximum versatility of use. The four Landpower models are powered by the very latest generation of F.T.P. NEF 6-cylinder turbo engines with air-to-air intercooler, meeting the TIER 3 emission standards. The new engines deliver 117, 133, 141 and 157 Hp (ISO ratings), respectively, while providing exceptional torque levels.


NEW F.P.T NEF 2V SERIES TIER 3 ENGINES WITH NEW TILTING HOOD.

All LandPower tractors feature 6-cylinder turbo engines with air-to-air intercooler and mechanical injection system. Quiet and fuel-efficient, the nef 2v series engines meet the tier 3 emissions regulations and provide constant power and high torque backup for a great flexibility of use. The tilting hood provides easy access to the engine for routine service and maintenance.

  LANDPOWER
125
LANDPOWER
135
LANDPOWER
145
LANDPOWER
165
F.P.T. TURBO/INTERCOOLER AIR-AIR (TIER 3) NEF 2V NEF 2V NEF 2V NEF 2V
MAX. ENGINE POWER (ISO), HP/KW 117/86 133/98 141/104 157/116
NET PTO POWER (ISO), HP/KW 100/73* 114/83* 120/88* 135/99*
MAX.TORQUE, LB. (NM) 380 (515) 435 (590) 461 (625) 509 (691)
NR. OF CYLINDERS/DISPLACEMENT, CU. IN. (CM3) 6728 / 6 6728 / 6 6728 / 6 6728 / 6
FUEL TANK CAPACITY, GAL. (LT) 68 (260) 68 (260) 68 (260) 68 (260)



TOP-TRONIC TRANSMISSION (108FWD + 36REV) WITH DE-CLUTCH CONTROL AND REVERSE POWER SHUTTLEtrue

The Top-Tronic transmission triples under load the 36 speeds of the basic transmission offering a total choice of 108 forward 36 reverse gears. The Top-Tronic is activated with the green buttons integrated in the gear lever. The de-clutch control (orange button on the gear lever) and the reverse Power Shuttle (lever under the steering wheel) enable clutch-less engagement and reversal of all gears.

BUSINESS CLASS CAB WITH ROOF-FITTED AIR-CONDITIONING.

The four-post Master Class cab with its generously sized, back-hinged doors, provides an outstanding all-round visibility . The optimum access to the driving area, the high quality of internal components, the design and the ergonomics of all controls together with the perfect sound-proofing maximize the driving comfort. The transparent glass window at the top increases the visibility when front loaders are used. The pneumatic seat, the adjustable steering wheel, together with the outstanding air conditioning system, make it possible to work for hours without getting tired.. Visibility when working at night is ensured by 10 powerful halogen.

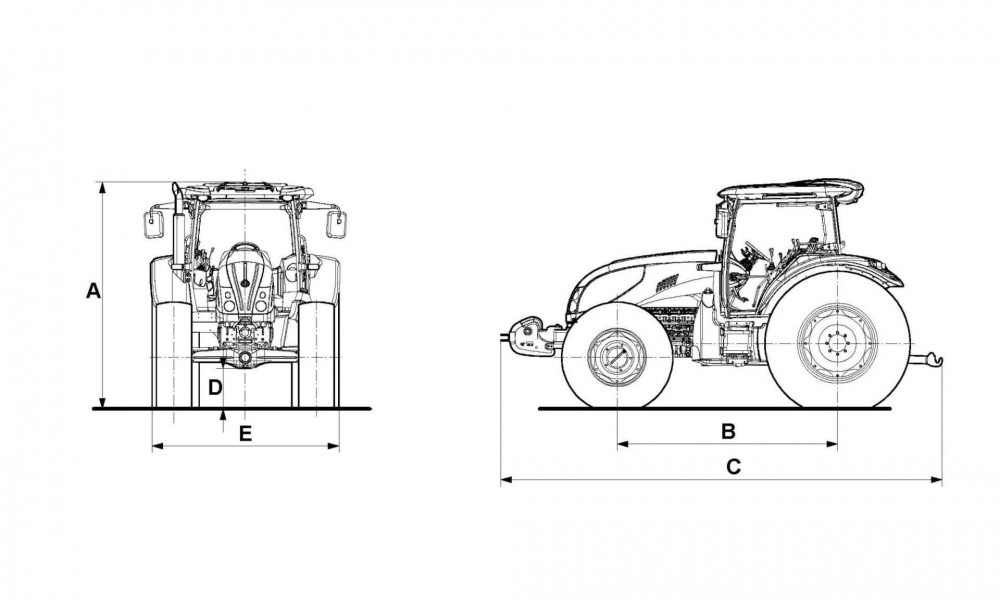

DIMENSIONS AND WEIGHTS

   LANDPOWER
125
 LANDPOWER
135
 LANDPOWER
145
 LANDPOWER
165
STD REAR TYRES 18,4R38 520/70R38 600/65R38 600/65R38
A HEIGHT OVER CAB, IN. (MM) 2980 2980 2980 2980
B WHEELBASE, IN. (MM) 110 (2800) 110 (2800) 110 (2800) 110 (2800)
C MAX. LENGTH (WITH BALLAST WEIGHTS), IN. (MM) 5345 5345 5400 5610
D GROUND CLEARANCE, IN. (MM) 500 500 500 500
E MIN/MAX WIDTH, IN. (MM) 2220/2520 2220/2520 2220/2520 2250/2520
TOTAL WEIGHT (WITHOUT BALLAST WEIGHTS), LB.(KG) 6000 6000 6000 13750 (6250)
