Serie 5 HC

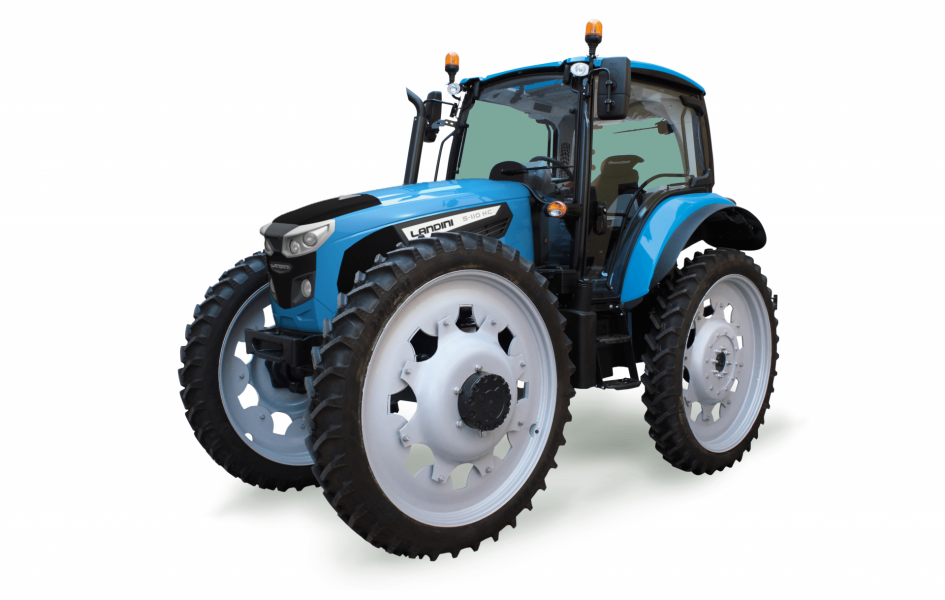

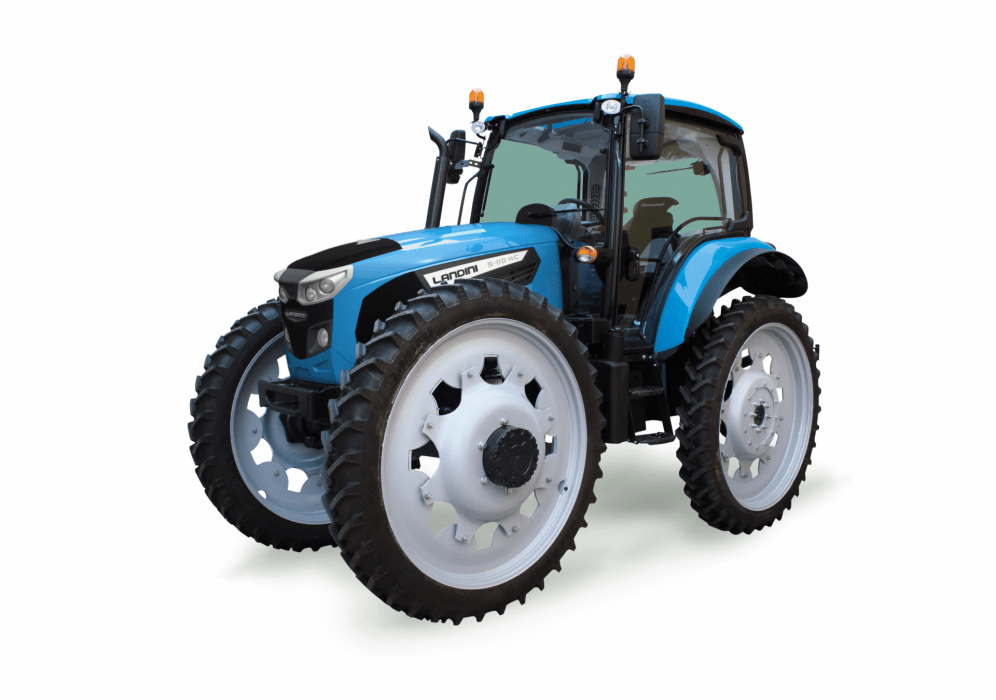

Serie 5 HC tractor, the true horticultural specialist
The Serie 5 HC is Landini’s untiring specialty tractor for vegetable crops. Designed for superior comfort and productivity, the Serie 5 HC tractor is ideally suited for planting, fertilizing, irrigating and harvesting vegetables, fruits, corn, rice and other crops.
3,6 / 4
95 102
Mechanical with Synchro Shuttle
With the Total View Slim suspended cab and the front suspended axle, which isolate the operator from shocks and vibrations generated by uneven terrain, the new Serie 5 achieves the goal of increasing productivity while reducing operator fatigue during long working days in the field. In addition, a new highly-efficient sound insulation system further reduces the noise level inside the cab. Everything inside the Total View Slim cab is designed to enhance operator comfort and convenience. The flat floor and the roomy interior create a spacious feel. The driver’s seat is available with air suspension system and the telescopic tilt-adjustable steering column tilts with the instrument cluster. All controls are ergonomically placed and intuitive to operate. The interior with automotive-grade fit and finish and the roof-integrated air-conditioning system maintain a comfortable working environment all year round. The four-post cab design with its all-round glazing provides unobstructed view in every direction, making manoeuvring in tight spaces and at headlands easier and safer, while a transparent roof hatch provides extra visibility for loader operation. Up to 10 LED work lights ensure optimum illumination of the working area at night.
To meet the requirements of the new Stage V/Tier4 Final emissions regulations, Landini redesigned the engine/transmission combination of the Serie 5 tractor in order to keep performance and efficiency at peak levels. The exhaust gas after-treatment system is no longer mounted onto the cab right post, but has been moved under the hood to provide full visibility during work. The new Serie 5 tractors are powered by FPT F36 3.6L four-cylinder turbo engines with multivalve technology, intercooler and common rail injection system. The two models in the range deliver 95 and 102 hp and meet the Stage V/Tier 4 Final emissions regulations using DOC, DPF and SCR after-treatment technologies.
5-100 HC | 5-110 HC | |
---|---|---|
Manufacturer | FPT | FPT |
Max power (97/68/EC - ISO TR 14396) hp/kW | 95.2/70 | 102/75 |
Max. Torque at 1400 rpm Nm | 395 | 430 |
Cylinders / Displacement / Valves | 4 / 3.6 L / 16 | 4 / 3.6 L / 16 |
A variety of transmission configurations allow the 5 Series to better meet the specific needs of each farm, further enhancing the tractor versatility. Options available range from a basic 12/12 Speed Four transmission with synchro shuttle up to an electrohydraulic 48/16 T-Tronic transmission with HML powershift and creeper.
The open-centre hydraulic system of the Serie 5 tractor can be equipped with up to 3 pumps with a total flow rate of 82 l/min. This increased hydraulic capacity allows the operator to:
The Serie 5 can be equipped with up to six remote valves. Three valves are mechanically operated and one is electronically controlled. Two additional mid-mount remotes allow the use of front-mounted implements such as the front loader. One valve can be optionally equipped with a flow divider that splits and directs the flow to two separated outlets. The Serie 5 can be equipped with four types of remote valves that can be used in combination to suit different application needs: - Standard: double-acting; - Kick-out: with automatic detent release; - Float: for implements following the ground contour; - Hydraulic/Floating: for the use of implements requiring a hydraulic motor
5-100 HC | 5-110 HC | |
---|---|---|
Wheelbase mm | 2355 | 2355 |
Max length with front weights - Track width (min - max) mm | 2870 - measured with tyres 9.5R48 - 9.5R48 | 2870 - measured with tyres 9.5R48 - 9.5R48 |
Max lenght with front ballast - Max overall width mm | 4400 - (1782-2542) - measured with tyres 9.5R48 4WD | 4400 - (1782-2542) - measured with tyres 9.5R48 4WD |
Height from cab roof to rear axle centre mm | 2070 | 2070 |
Shipping weight - measured with average specs Kg | 4300 | 4300 |
Gross vehicle weight Kg | 6000 | 6000 |
