Landini’s compact range becomes Stage V

The new range features an extensive revolution engine wise, moving from the Yanmar Tier 3 to the Kohler Stage V compliant engine. A transition made possible by the design skills and expertise of Argo Tractors engineers, who have managed to maintain the height of the bonnet from the ground, by adopting an exhaust gas treatment system at the side of the bonnet, whilst guaranteeing the operator excellent visibility. This solution represents an irrefutable competitive advantage for Landini Mistral2, making this tractor suitable not only for typical specialised farming applications, but also for municipality work, such as grounds maintenance of public parks and general landscaping tasks.

Agility and compactness

Engine

1,9 / 3

Power

49 57

Transmission

Mechanical power shuttle transmission

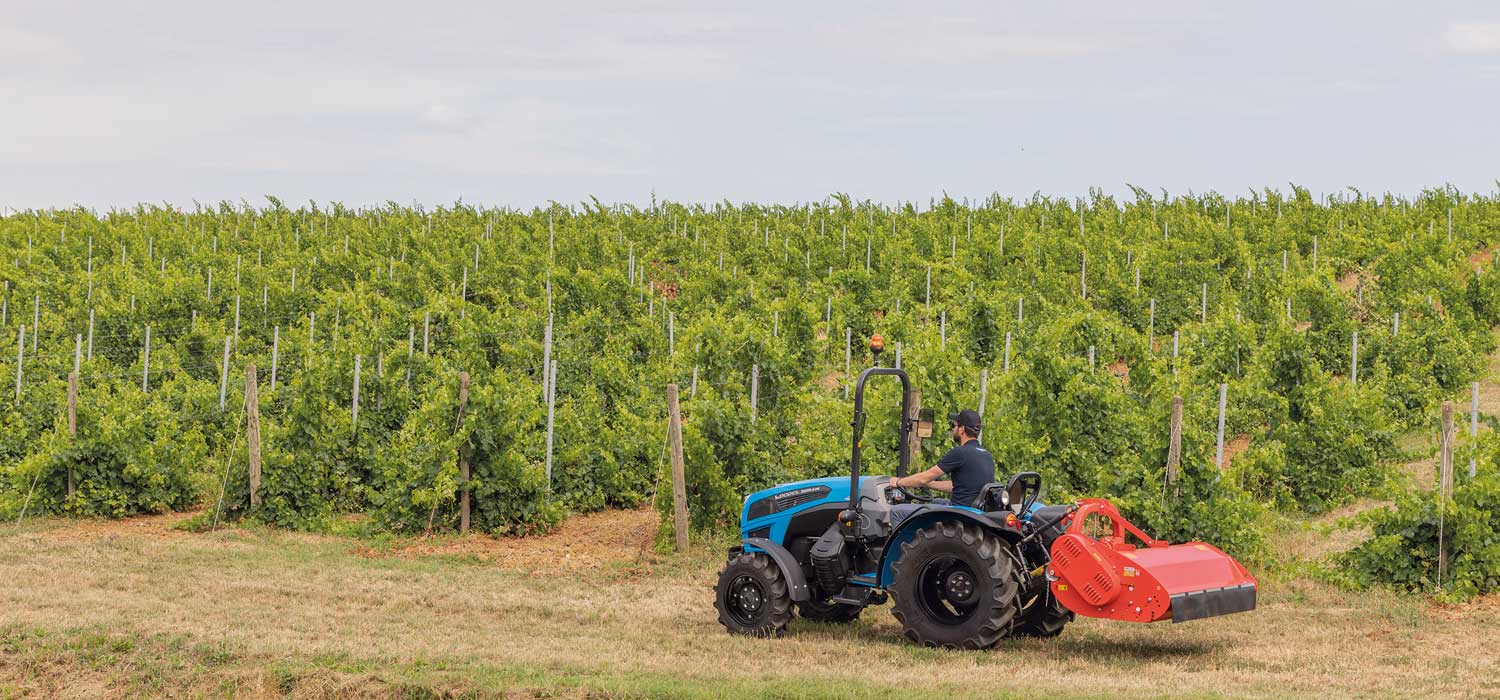

Landini Mistral2 is available in two configurations: Standard, available for the platform or cab versions, and GE (Ground Effect), only for the platform version which, with a “lowered” set-up achieved thanks to the use of dedicated rear reduction gears and a front axle, which further reduces the overall height from the ground of the bonnet and mudguards, making it an excellent choice for working under polytunnels.

Available in platform or cab versions

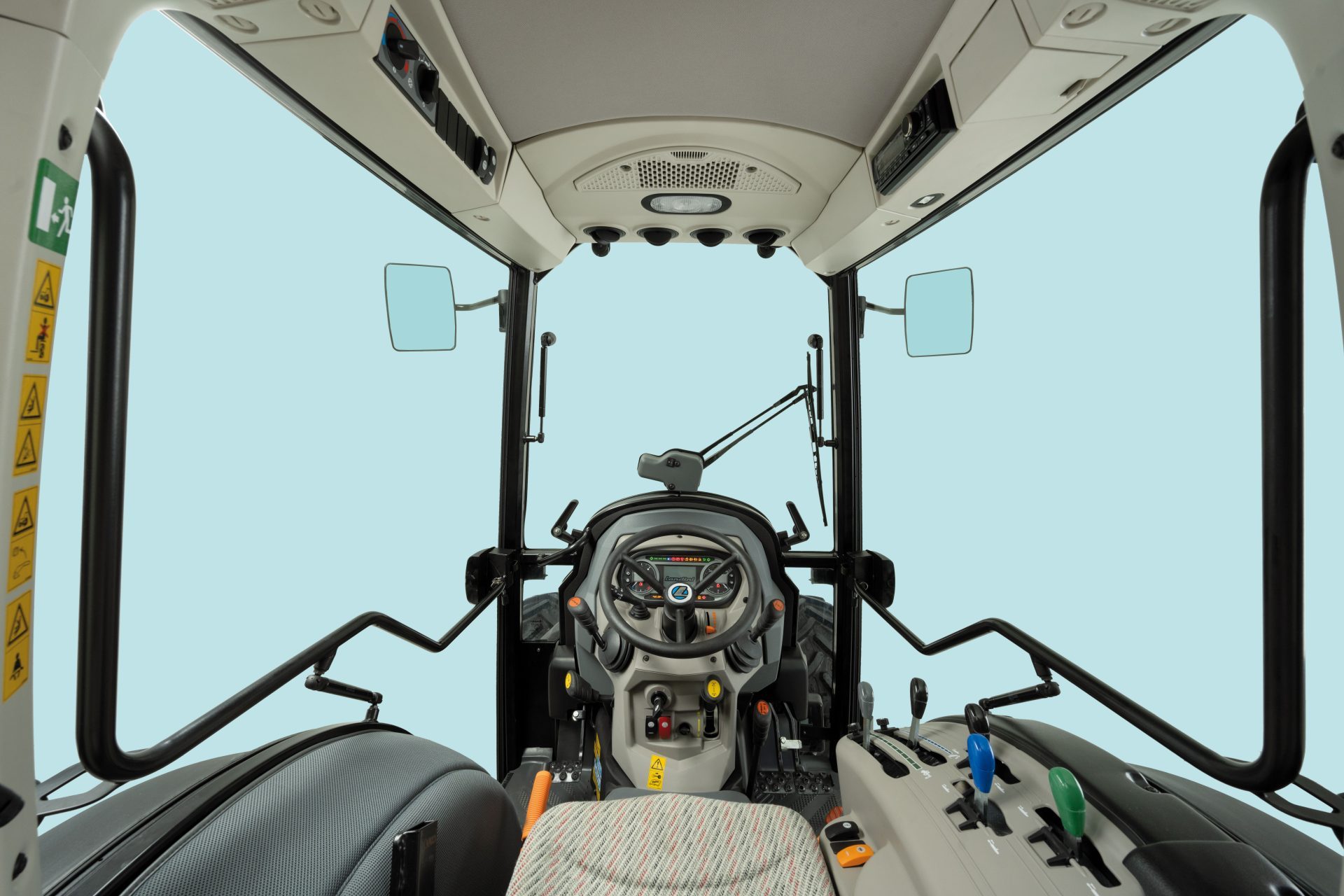

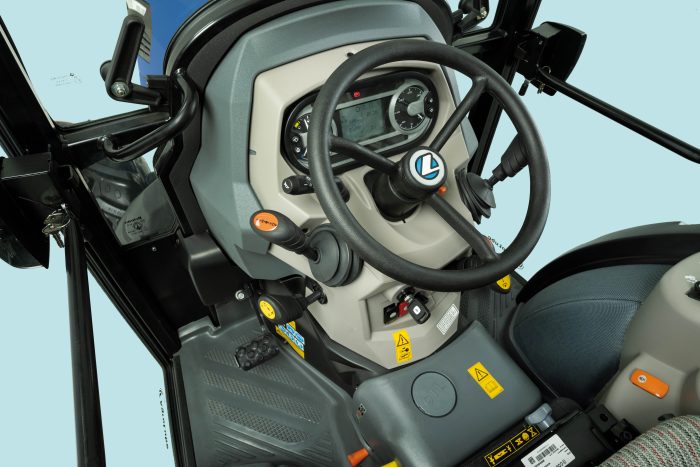

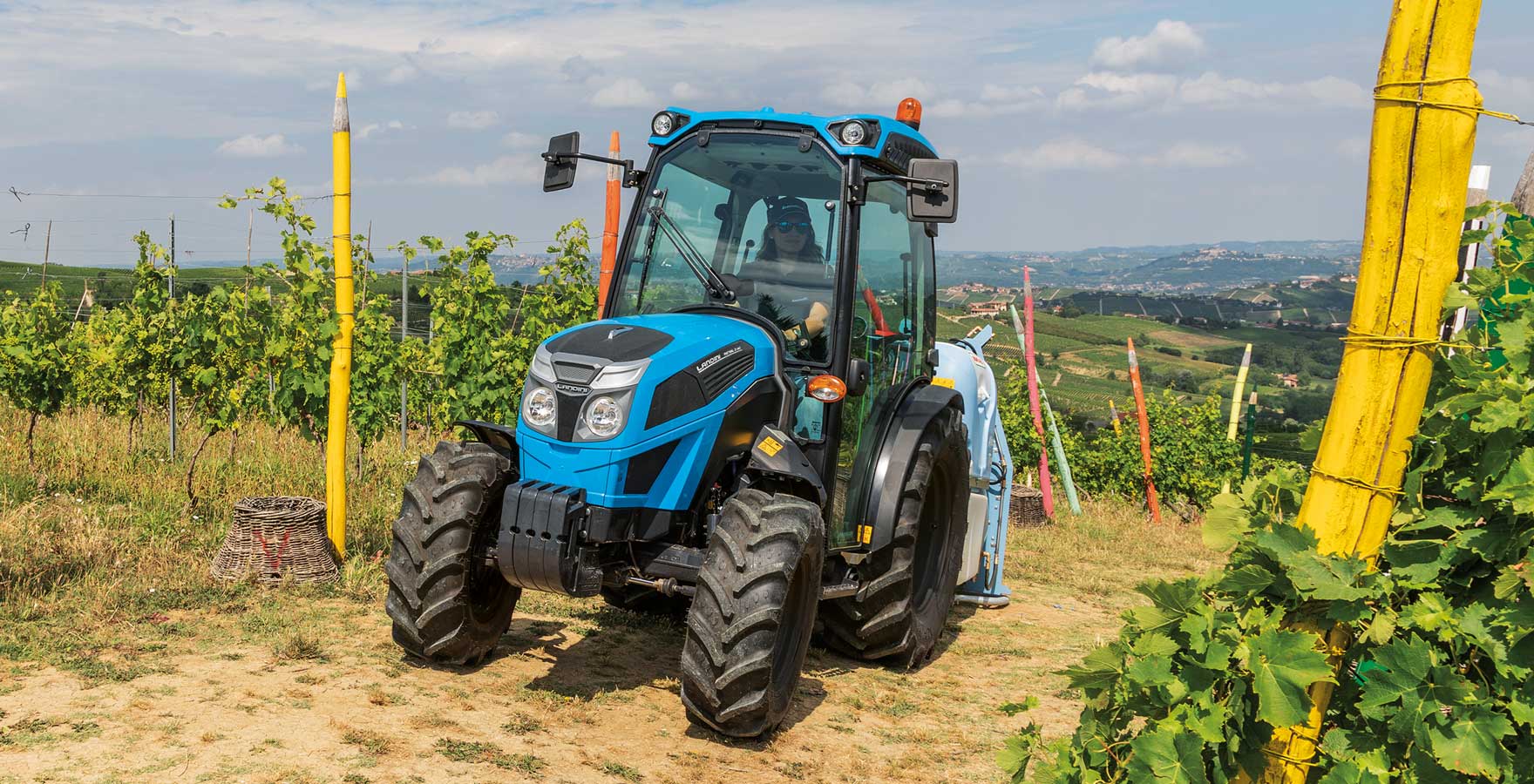

The FOPS cab boasts a modern and functional design, and is mounted on silent blocks that isolate it from noise and vibration. Comfort features also include air conditioning, flip-up front window and a radio. The controls are ergonomic and user-friendly for the operator and the 4-upright structure offers excellent visibility.

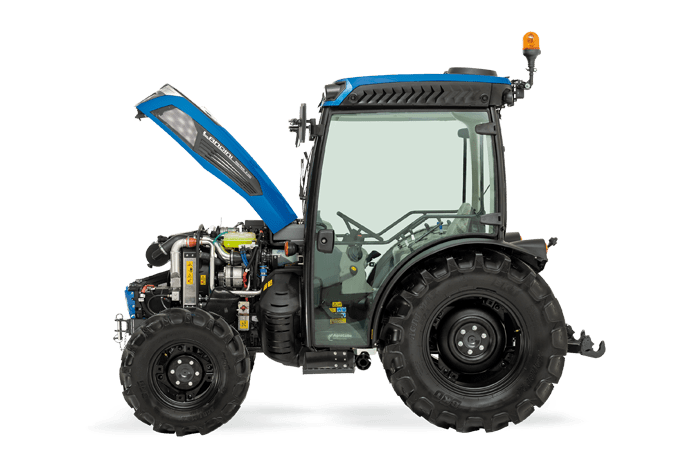

Kohler Engine

The 1.9 litre, 3-cylinder, turbo aftercooled engine delivers, for the MISTRAL 2-055 and 2-060 models, maximum outputs of 49 and 57 Hp (ISO) respectively with a maximum torque of 180 and 200 Nm already available at 1200 rpm, which places MISTRAL2 as the Best in Class in its category.

An important new feature is the availability of the Engine Memo Switch that allows you to save engine rpms and to quickly retrieve them with a practical button on the right-hand console.

MISTRAL 2-055 STD MISTRAL 2-060 STD MISTRAL 2-055 GE MISTRAL 2-060 GE
Manufacturer Kohler Kohler Kohler Kohler
Engine type KDI 1903 TCR KDI 1903 TCR KDI 1903 TCR KDI 1903 TCR
Max power (ISO) CV/kW 49 / 36 57 / 42 49 / 36 57 / 42
Engine speed at max power rpm 2600 2600 2600 2600
Max torque  Nm 180 200 180 200
Engine speed at max torque rpm 1200 1200 1200 1200
Cylinders / Valves - Displacement cm³ 3 / 12 - 1900 3 / 12 - 1900 3 / 12 - 1900 3 / 12 - 1900
Emissions category Stage V Stage V Stage V Stage V

Mechanical power shuttle transmission

The mechanical power shuttle transmission is available in 12/12 or 16/16 versions if equipped with creeper, with a minimum speed of 220m/h.

Hydraulic circuit

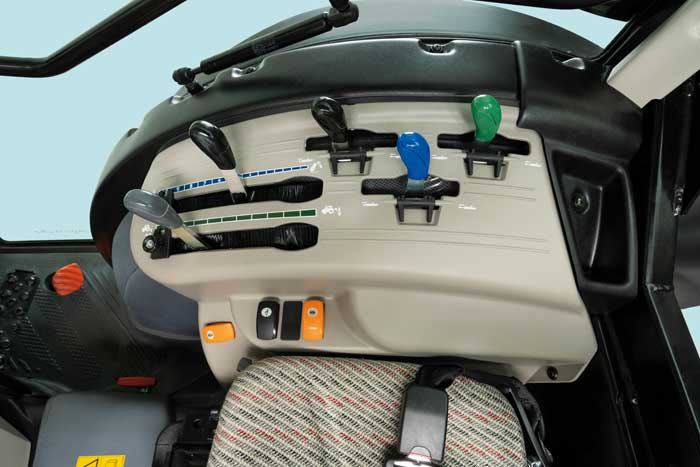

Increased hydraulic flow rate of 35 litres/minute for the rear lift and services and the dedicated 20 litre/minute steering pump. The category one three-point hitch rear lift system can lift up to 1200kg and the front lift system, optional with or without a 1,000 rpm PTO, up to 400kg, while there are 3 additional spool valves available (2 standard valves and 1 optional floating valve). The controls are installed on the new right-hand console. The rear mechanical PTO is available in two different speeds 540 and 540E rpm and synchronised forward speed. The dual traction front axle has an electro-hydraulic engaging “Hydralock” differential lock in both the STD and GE versions.

Dimensions and weights

MISTRAL 2-055 STD MISTRAL 2-060 STD MISTRAL 2-055 GE MISTRAL 2-060 GE
Wheelbase 4RM  mm 1790 1790 1770 1770
Height over ROPS min - max mm 2124 - 2199 2124 - 2199 2030 - 2105 2030 - 2105
Height over cab min - max mm 2205 - 2280 2205 - 2280 - -
Height over hood min - max mm 1230 - 1305 1230 - 1305 1131 - 1206 1131 - 1206
Length w/front weights min - max mm 3168 - 3504 3168 - 3504 3168 - 3504 3168 - 3504
Overall width min - max mm 1203 - 1638 1203 - 1638 1260 - 1615 1260 - 1615
Shipping weight ROPS/cab Kg 1600 / 1780 1600 / 1780 1580 / - 1580 / -
Gross vehicle weight Kg 3050 3050 3050 3050
Rear tire size (Index Radius - IR) min - max  mm 320/70R20 (475) - 360/70R24 (550) 320/70R20 (475) - 360/70R24 (550) 320/70R20 (475) - 360/70R24 (550) 320/70R20 (475) - 360/70R24 (550)
