Trekker3 Compact

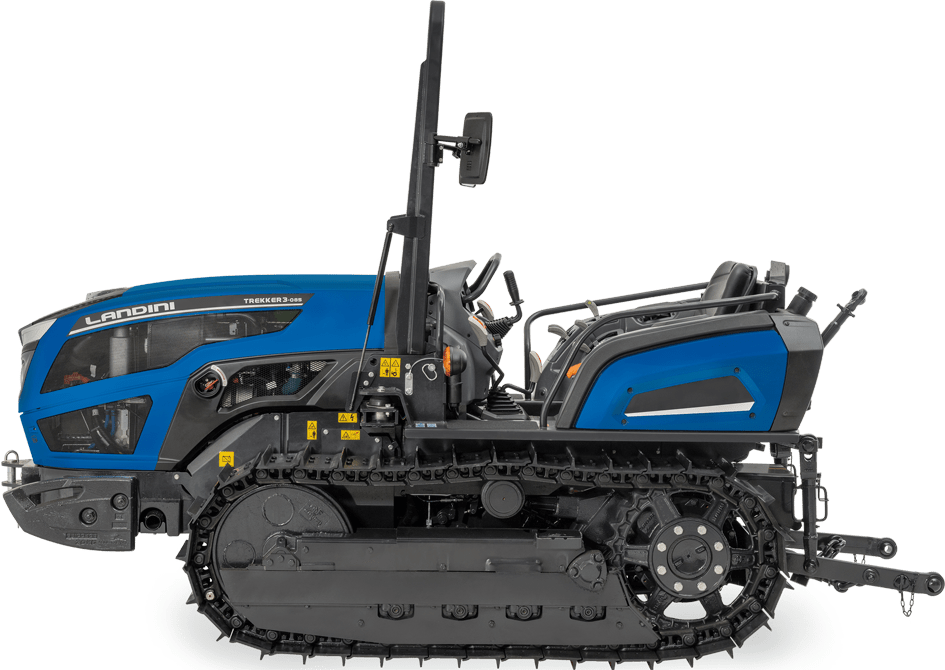

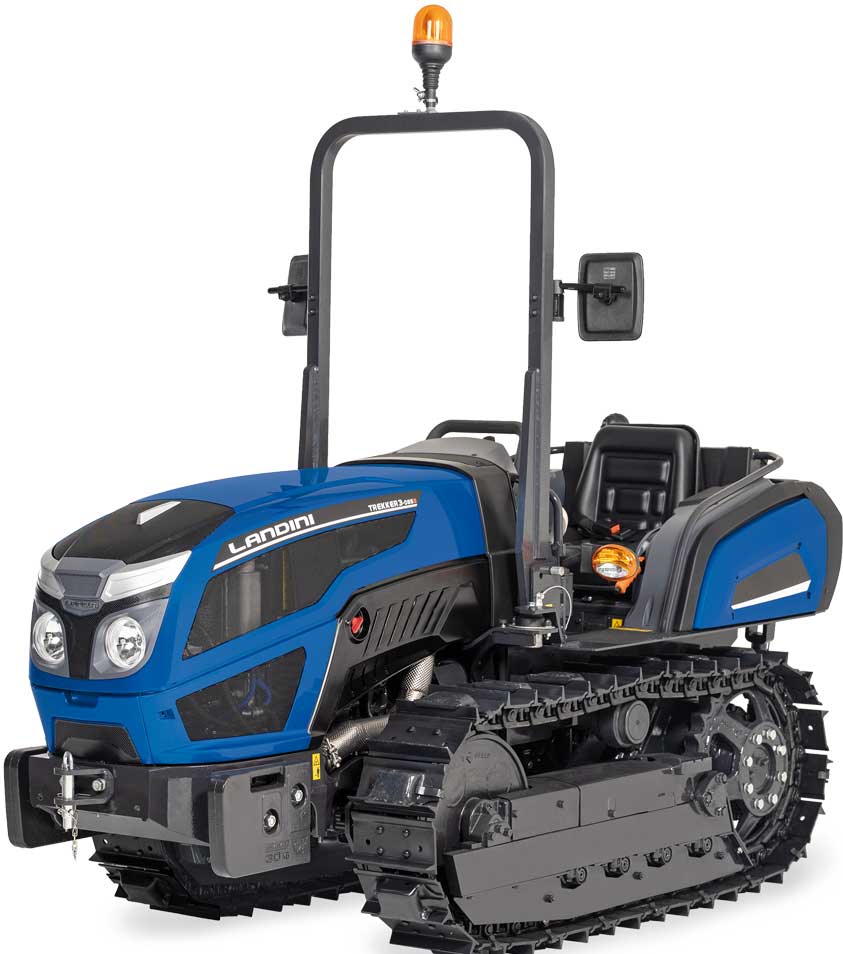

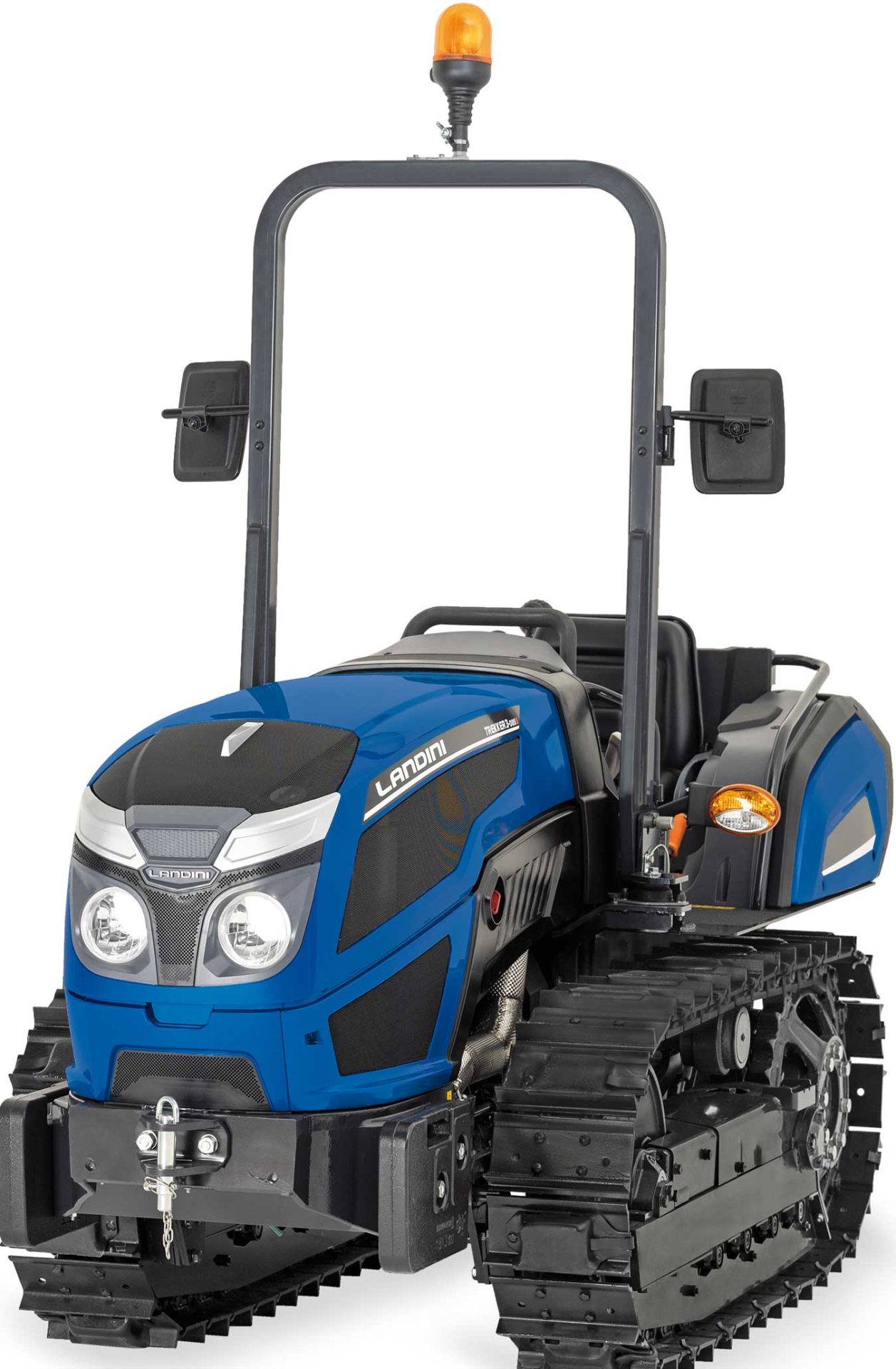

The most compact crawler tractor in its class
Landini expands its range of crawler tractors with the innovative Trekker3 Compact, a tracked tractor specially designed for use in narrow-row orchards and vineyards. Compact, nimble and efficient, the Trekker3 Compact will tackle tough terrains and steep inclines with ease, reaching where conventional tractors cannot reach. This new range consists of a single 3-085 model available in two versions: COMPACT and COMPACT S. The difference is the width of the soles. In the COMPACT version the width in mm is 280 - 310 (steel) / 300 (rubber) while for COMPACT S it is only 250 mm, with this configuration the soles are only available in steel.
Manoeuvrability, agility and safety
Engine
2,5 / 4
Power
75
Transmission
Speed Four

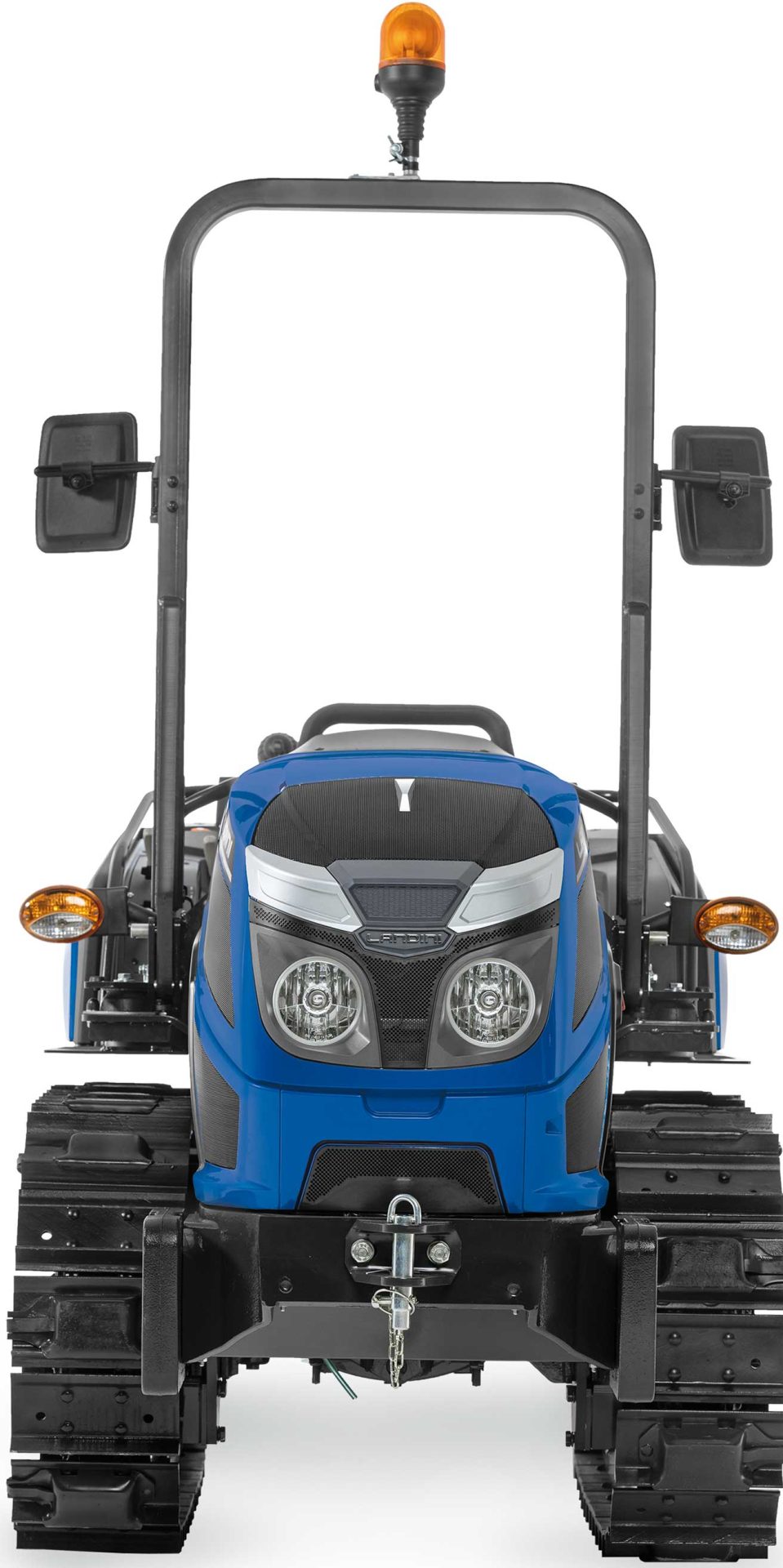

With a minimum width of only 1150 mm and a ground clearance of 230 mm, the Trekker3 Compact ensures excellent manoeuvrability, agility and safety, delivering high levels of efficiency even in the most challenging conditions. Thanks to a wide range of rubber and steel tracks to suit every need, the Trekker3 Compact always ensures a traction comparable to higher-horsepower conventional tractors, while minimising soil compaction.

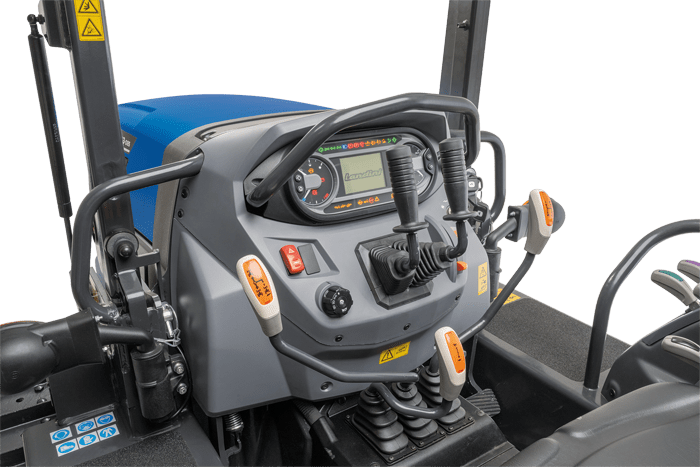

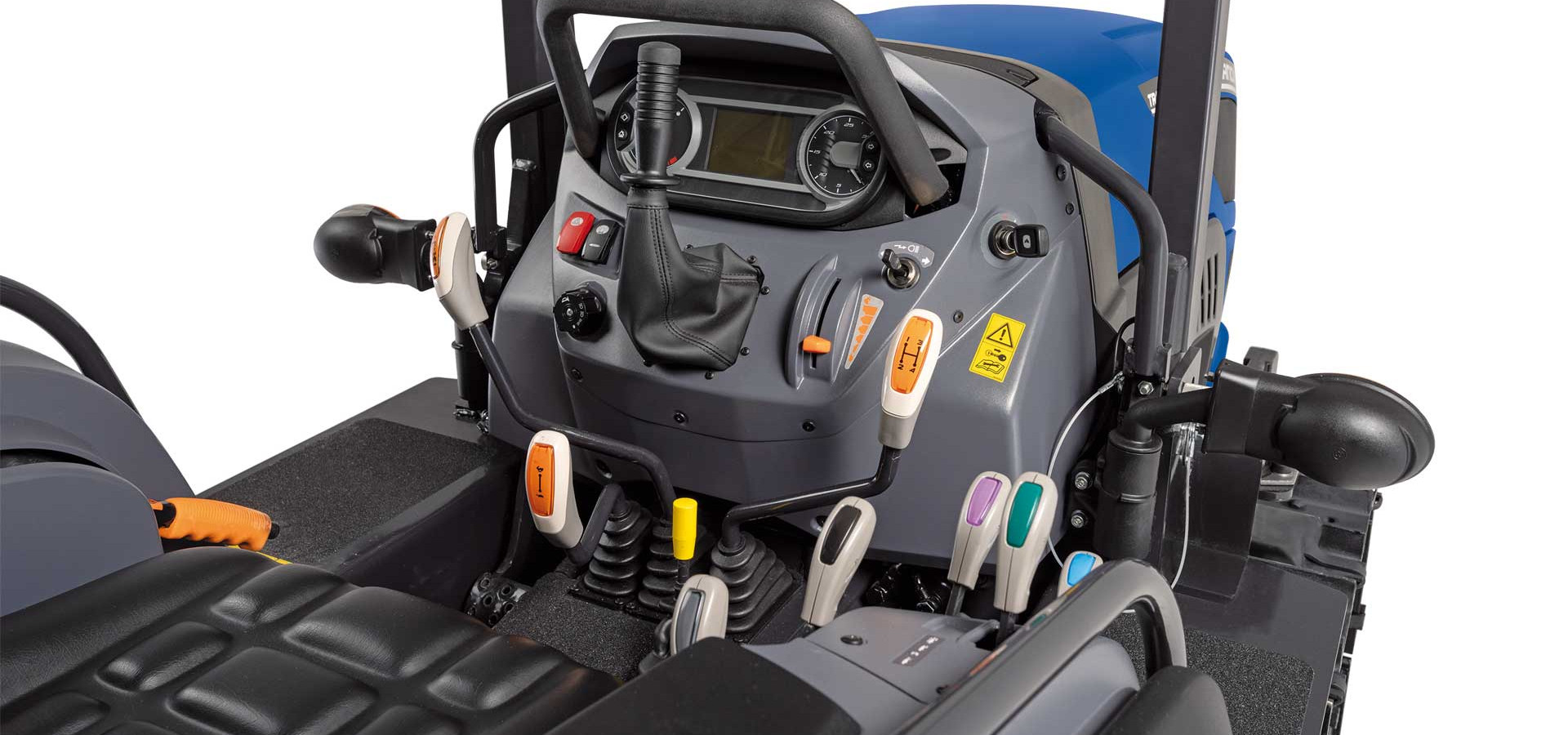

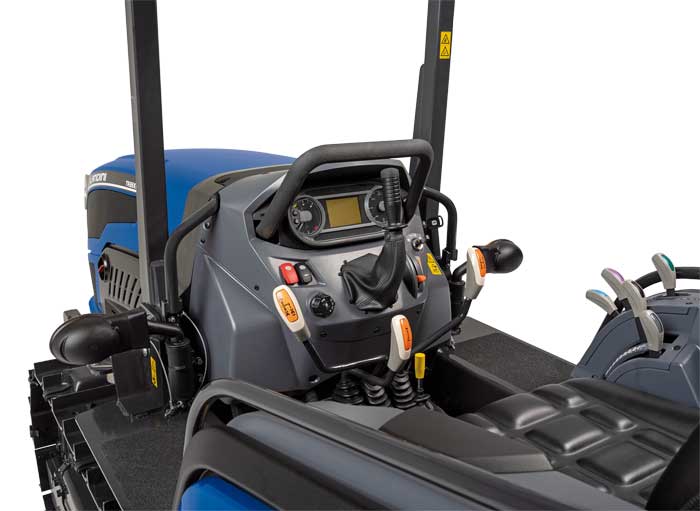

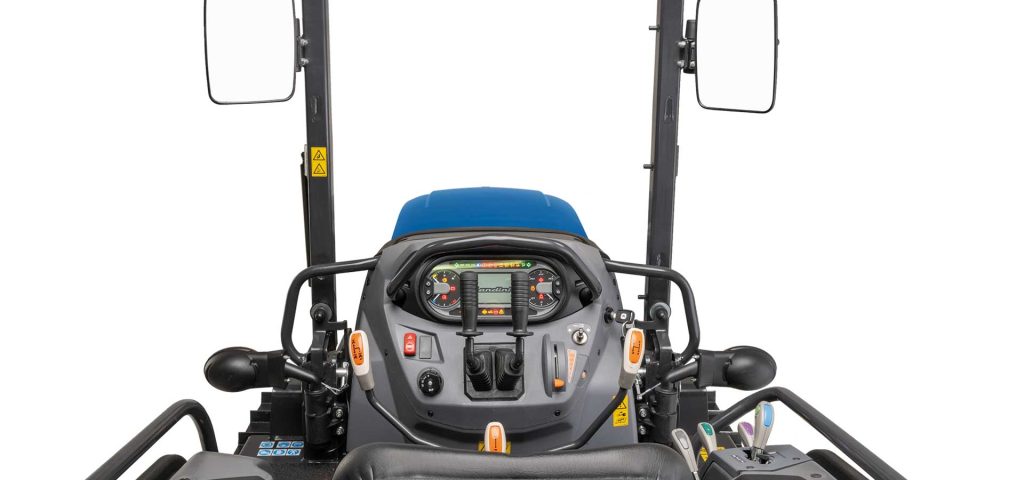

Driving position
The platform is suspended on Hydro silent blocks to isolate the driving position from engine heat and to reduce vibrations generated by rough terrain and mechanical parts, ensuring a level of comfort never before achieved.

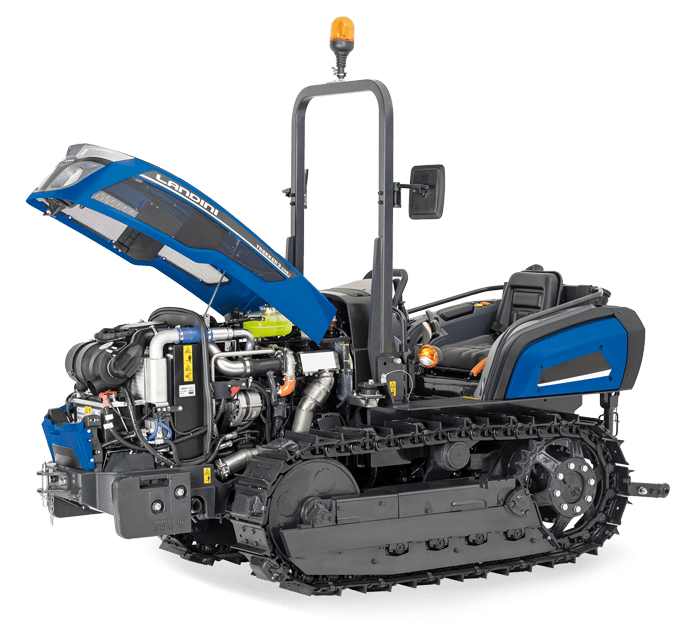

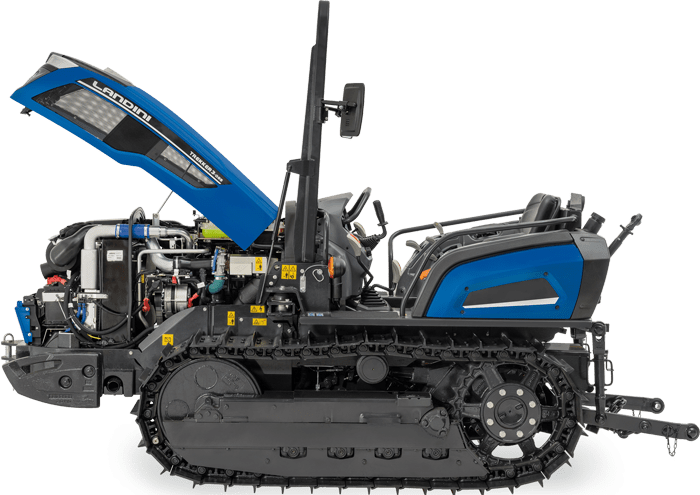

Kohler engines
The new super compact STAGE V KOHLER KDI 2504 2.5-litre, 75-hp, four-cylinder turbo aftercooled engine with common rail injection system is designed for maximum efficiency and long-lasting performance.
| Trekker 3-085 COMPACT | Trekker 3-085 COMPACT S | |
|---|---|---|
| Manufacturer | Kohler | Kohler |
| Model | KDI 2504 TCR | KDI 2504 TCR |
| Max Power (ISO) CV/kW | 75/55 | 75/55 |
| Max Torque Nm | 315 | 315 |
| Displacement (cm3) | 2500 | 2500 |
| Cylinders/ Valves | 4 TA / 16 | 4 TA / 16 |
| Fuel tank L | 45 | 45 |
Speed Four transmission
The rugged Speed Four transmission with synchro shuttle offers four synchronised gears and two mechanical ranges. The creeper provides up to 16 FWD + 8 REV gears and allows a minimum speed of 300 m/h.
Dimensions and weights
| Trekker 3-085 COMPACT | Trekker 3-085 COMPACT S | |
|---|---|---|
| Min-max overall width mm | 1260-1290 (metallic) / 1280 (rubber) | 1150 |
| Shipping weight Kg | 3250 | 3150 |
