Landini 2 Series

2-050

Main features

CYLINDERS
4
POWER
35
TRANSMISSION
Basic Gearbox + Reverse Shuttle

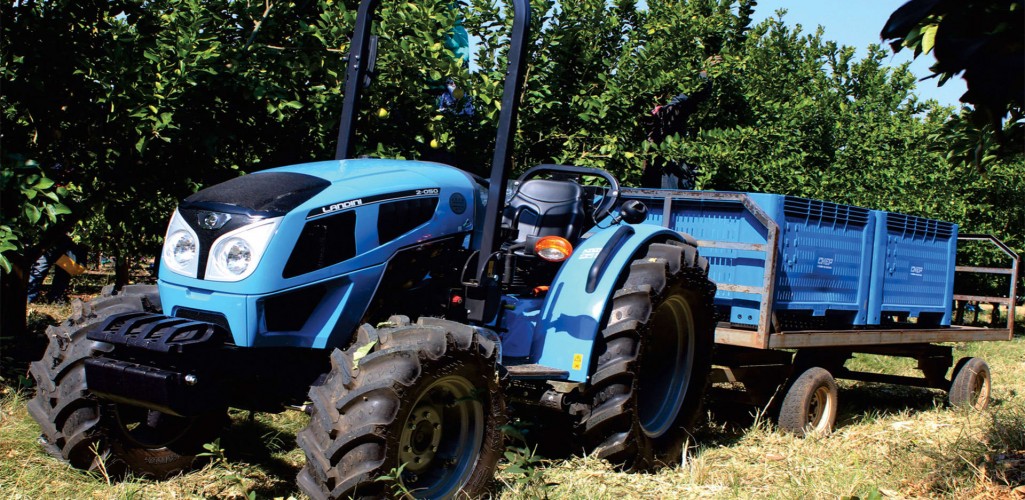

Landini 2 Series

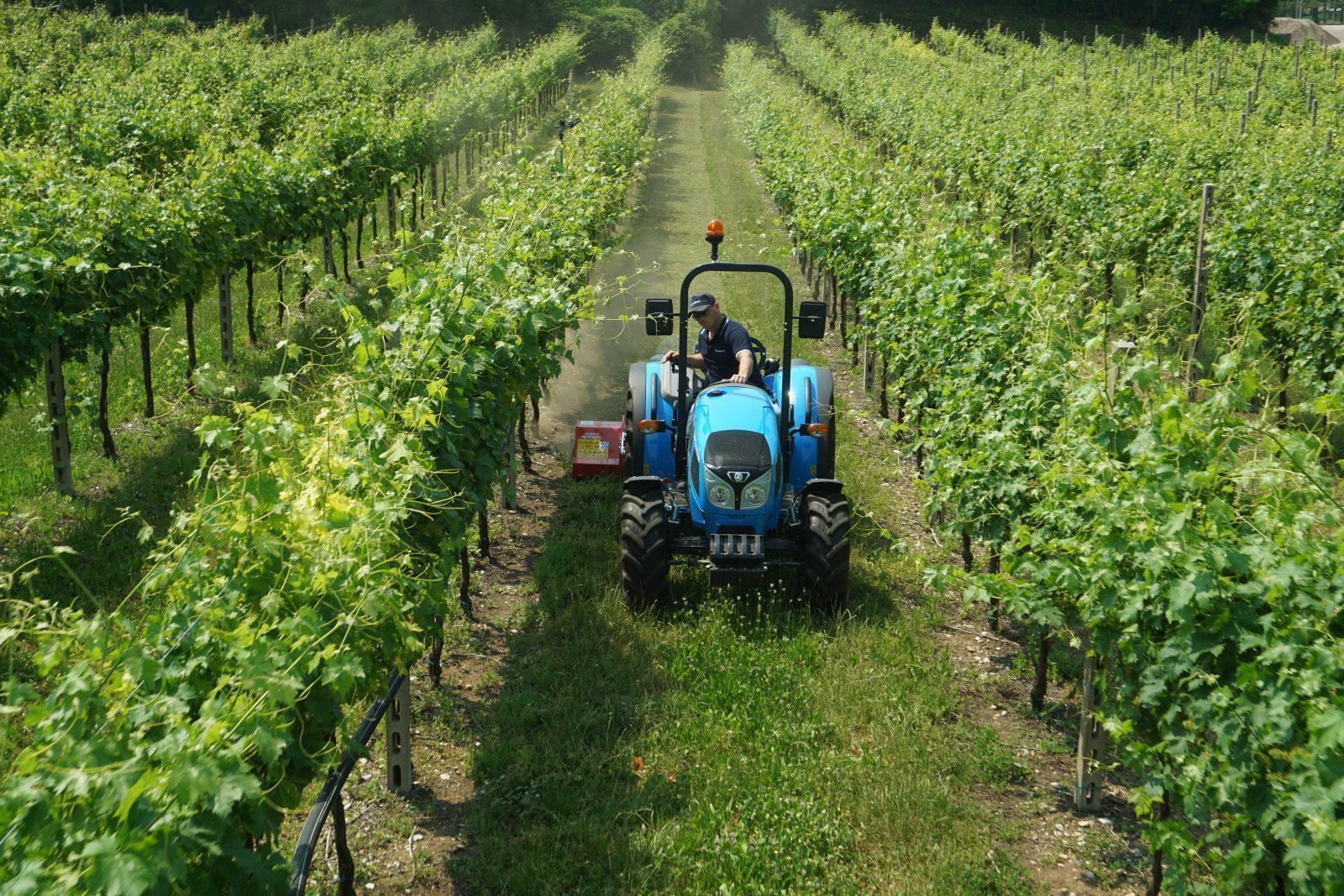

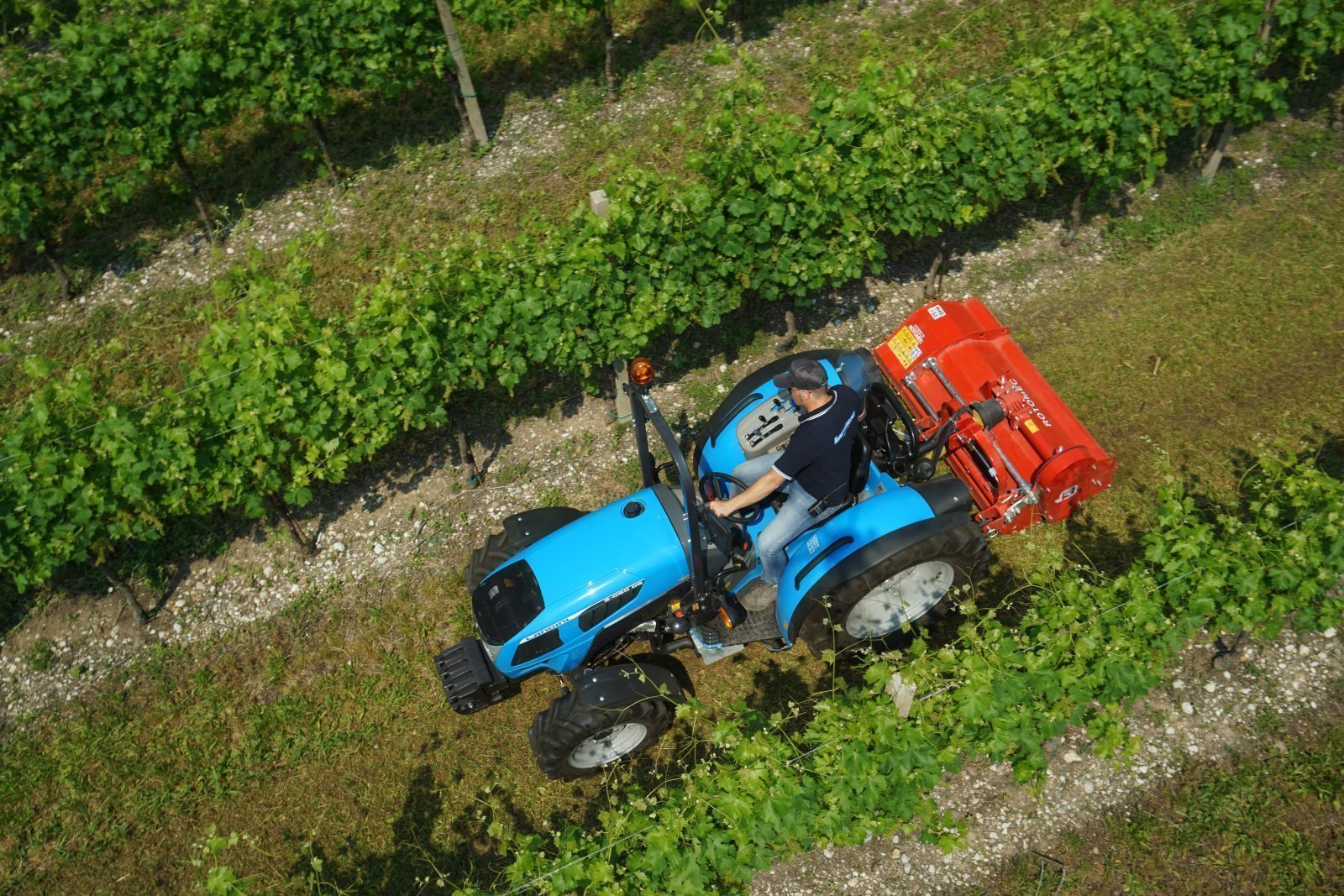

The Landini 2 Series replaces the Mistral range with a modern, agile and compact solution. This new tractor series shares some of the common design and styling elements of the hood and roof designs from others in the range, which continues with the modern family look of Landini. The result ensures improved performance where height and width constraints exist, such as awning vineyards or greenhouses. The 2 Series features 35 kW Yanmar engines.

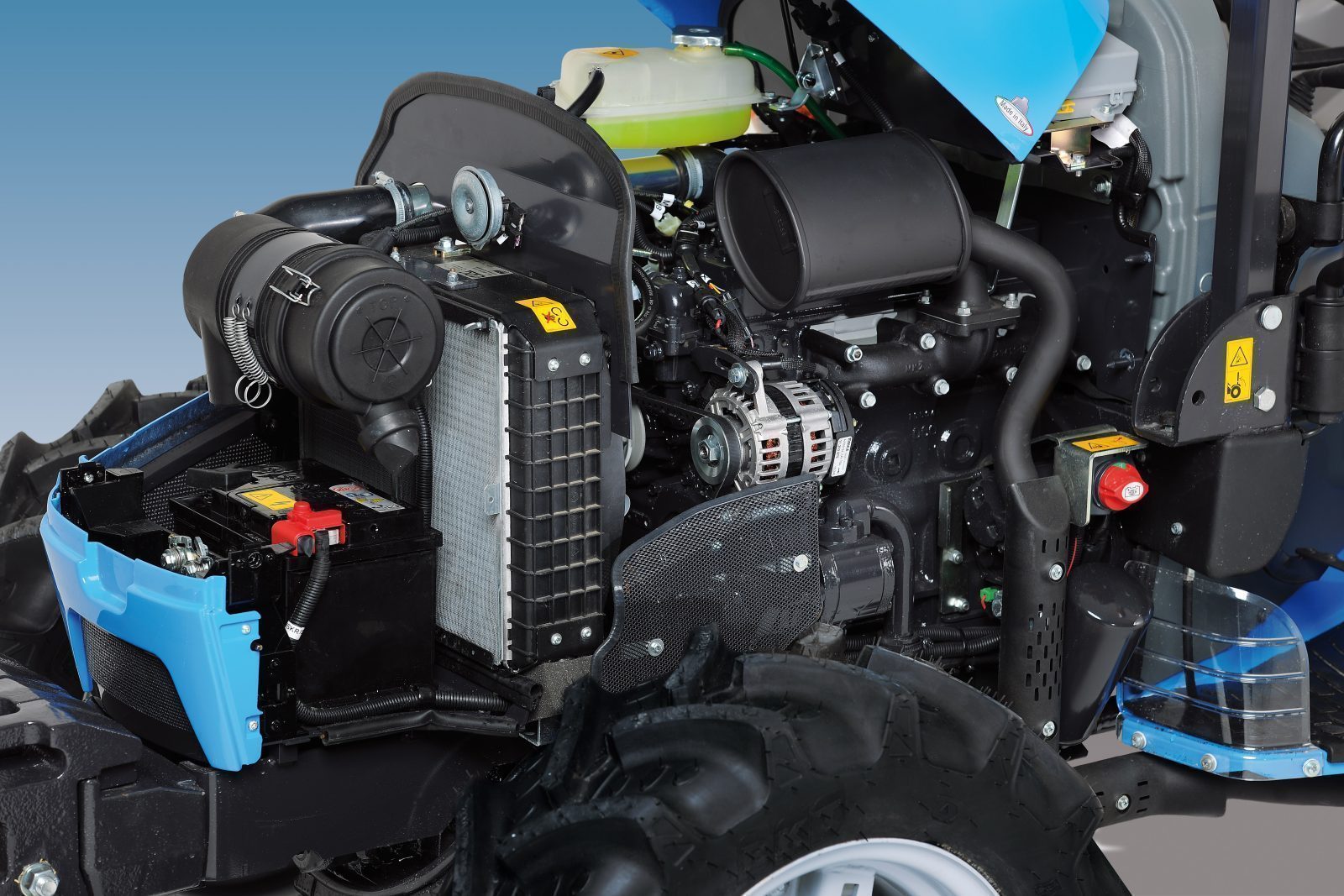

Yanmar Engine

2-050
Type4TNV88-KLN
Rated Power (ISO) kW35
Rated Speed (rpm)2800
Maximum Torque (Nm)141
Maximum Torque Speed (rpm)1200
No. of Cylinders4
Water CoolingSTD
Air FilterDry
Fuel Tank Capacity40

TRANSMISSION

2-050
Basic Gearbox + Reverse Shuttle 12Fwd + 12RevSTD
Rear Mechanical Diff. LockSTD
Independent Dual Dry Clutch (inch)9
Mechanical EngagementSTD

HYDRAULIC POWER LIFT

2-050
Mechanical OperatedSTD
Positional, Draft, Intermix and Floating Control FunctionsSTD
Standard Lifting Capacity (kg)1200
Hydraulic Pump Delivery, Hydraulic Lift/Steering (ltr/min)28/20
3-Point Linkage, CAT ISTD
Auxiliary Hydraulic Valves Double Acting2

DIMENSIONS & WEIGHTS

2-050
Front Tyres 4WD260/70 R16
Rear Tyres 4WD320/70 R24
Total Length with Ballast (mm)3225
Maximum Ground Clearance (mm)385
Wheelbase 4WD (mm)1760
Height at Steering Wheel (mm)1312
Minimum Width (mm)1385
Height to Safety Frame (mm)2097
Weight without Ballast 4WD (kg)1460
