Sigma 4 Front Loaders & Backhoes
Engine
/
Power
Transmission
Backhoes
| C180 | C230 | C270 | ||
| Bucket Breakout Force | 2600 | 2600 | 2750 | |
| Rotation Angle | 180 | 180 | 180 | |
| Pump Capacity | Lt / min | 16 | 16 | 26 |
| Operating Pressure | Cafe | 180 | 180 | 180 |
| buckets | min | 250-600 | 250-600 | 300-800 |
| Wight with Standard bucket | kg | 515 | 545 | 710 |

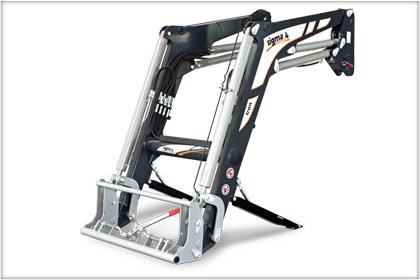

Front Loader with Manual Implement levelling on F Series Front Loader with Mechanical Implement self-levelling system on M Series Front Loader with Hydraulic Implement self-levelling system on H Series
• Fitting brackets supporting loader from tractor front end to rear axle shafts
• Hydraulic system conforming to tractor specifications Standard Equipment
• Two double acting cylinders for lifting
• Two double acting cylinders for the operation of the implement on F & M Series
• Two double acting cylinders for the operation of the implement designed with double rod for faster implement unloading on H Series
• Quick-release of loader from tractor VELOTAK
• Implement quick release EURO
• Hydraulic quick-fit couplings on CHROME, IRON & GOLD Series
• Adjustable support legs
• Bucket level gauge on IRON, GOLD Series
• Anti-bounce GENIUS SYSTEM
• Hydraulic multi-connector FLASH SYSTEM

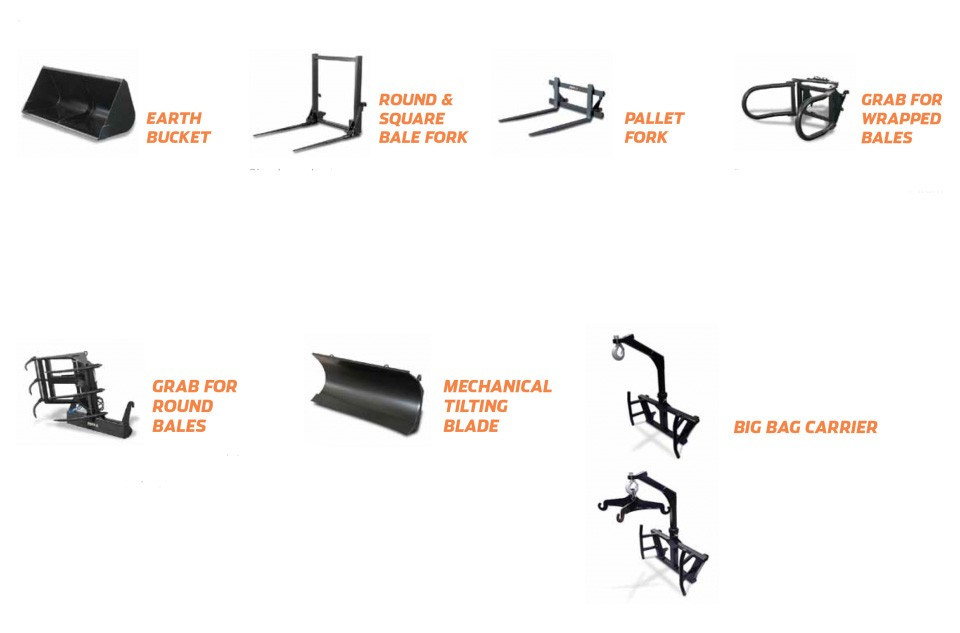

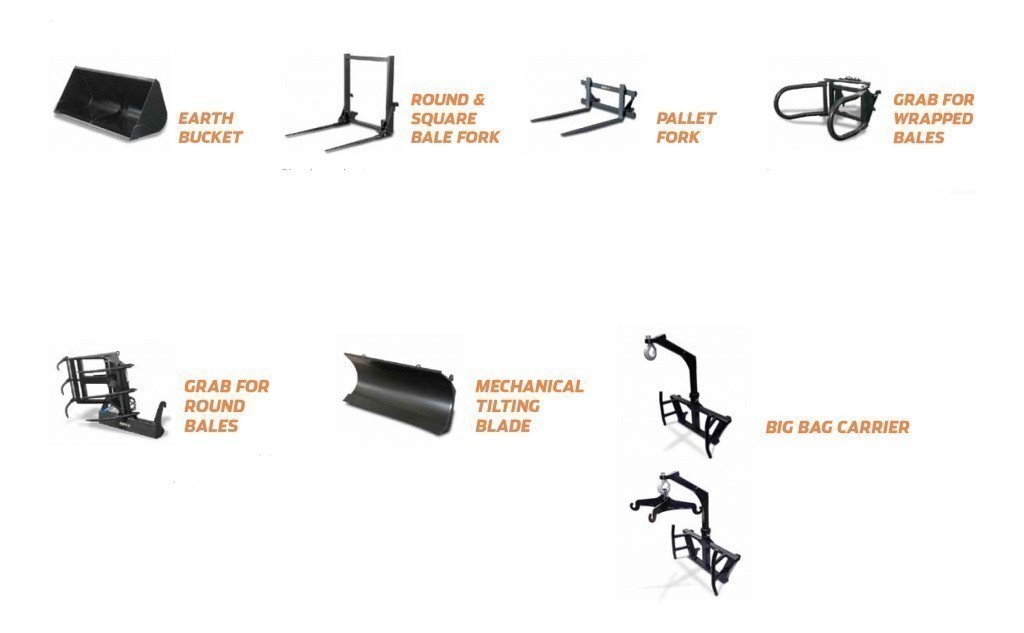

Earth Bucket Round & Square Bale Fork Pallet Fork Grab for Wrapped Bales Grab for Round Bales Mechanical Tilting Blade Big Bag Carrier
Front Loaders
| Chrome F | Chrome M | |||
| F20 | F30 | M20 | M30 | |
| Max lifting weight: At Pivoting Point With Tilted Bucket | 3800 2940 | 3870 3010 | 3800 2940 | 3870 3010 |
| Angles: Tilted bucket on ground Bucket Unloaded | 45 55 | 45 55 | 45 90 | 45 55 |
