Landini Super Series 90/100/110
Super T3 Series
Engine
4400 / 4
Power
61, 68, 75
Transmission
Rear Mechanical Diff. Lock

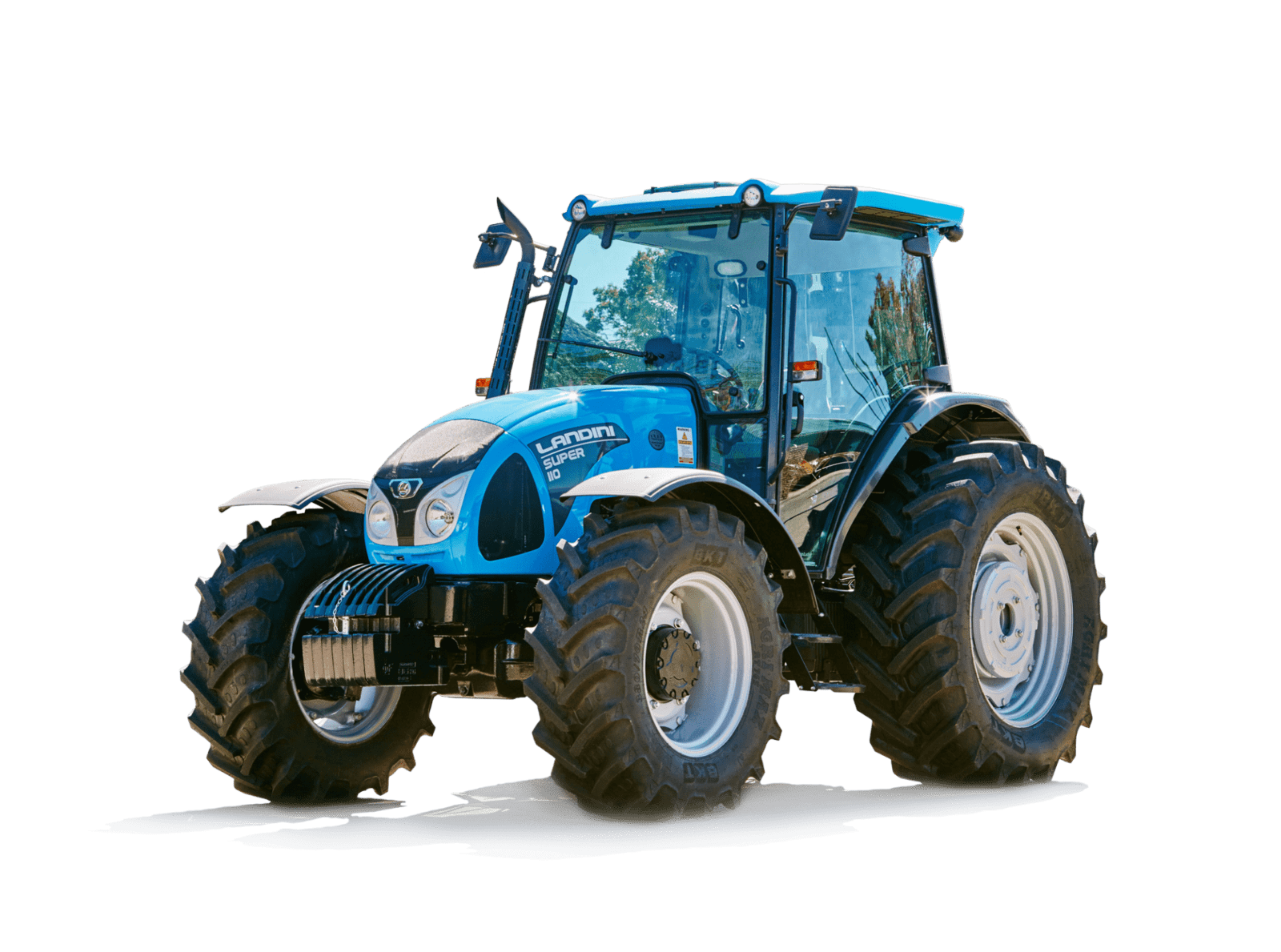

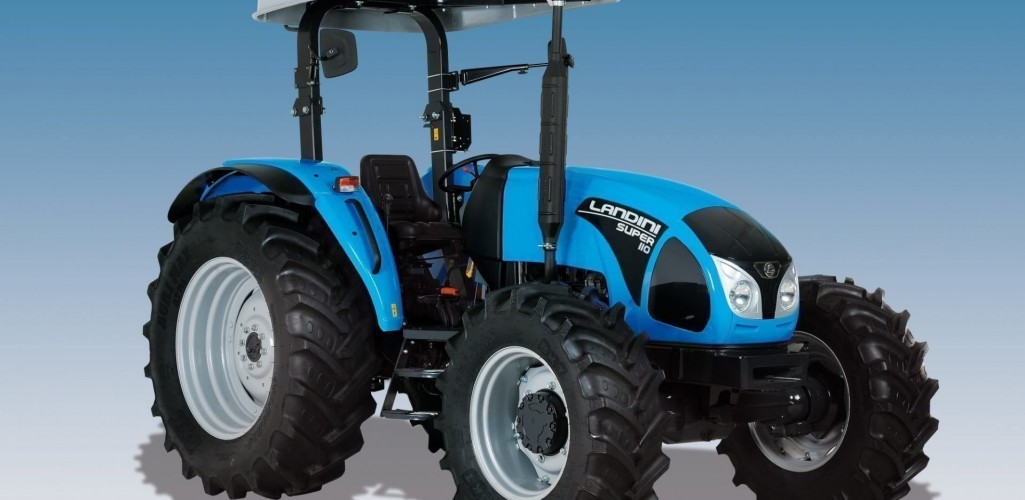

Simple, functional, economic The new Super T3 tractor family from Landini has been designed to replace the popular Globalfarm series. Supplied in both two- and four-wheel drive versions, this low-cost tractor combines a simple design with excellent performance and functionality. Three models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The Super 90, 100 and 110 models are powered by engines meeting Tier 3 emissions regulations.

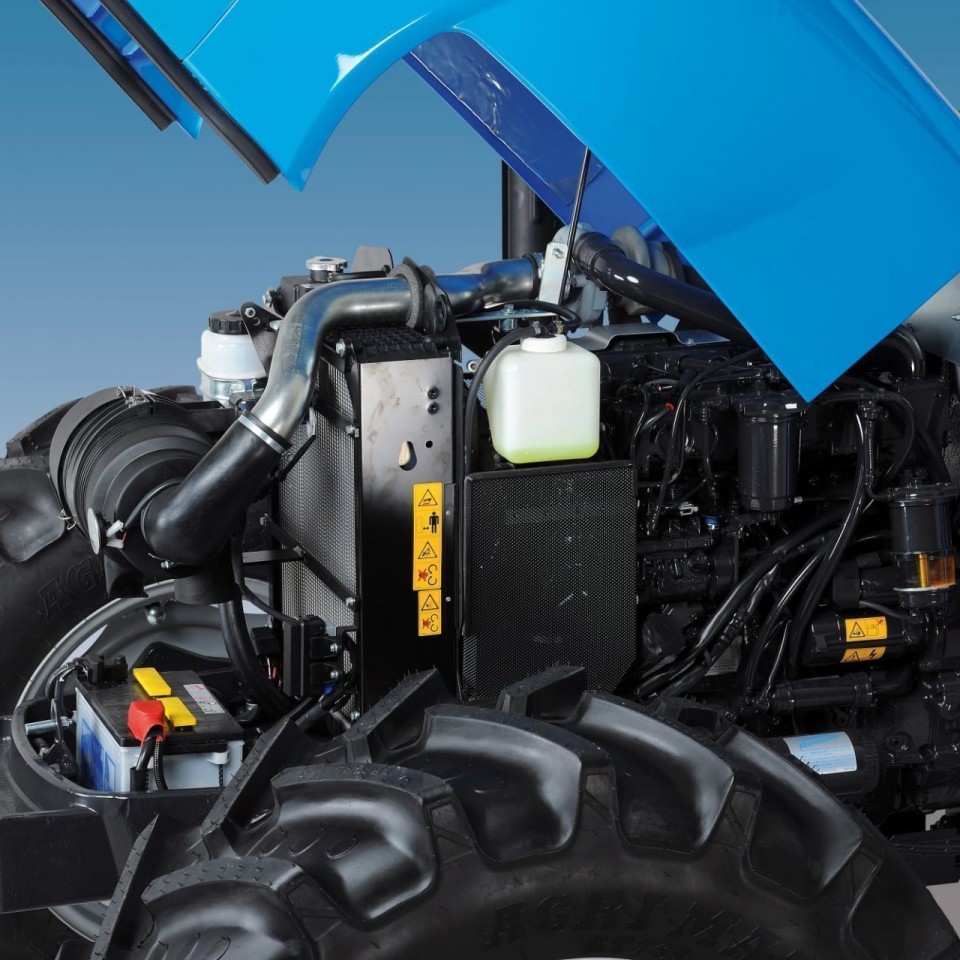

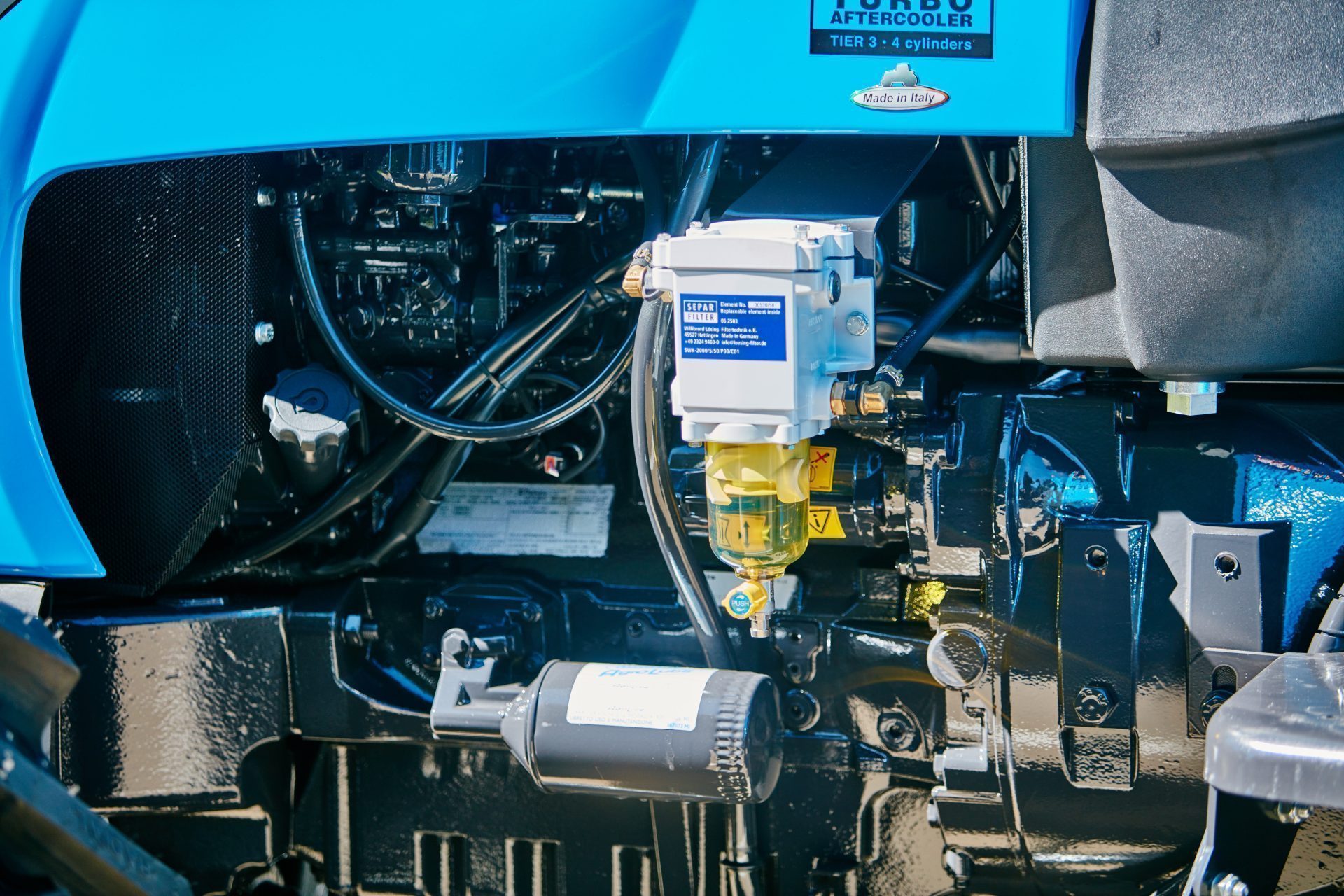

Perkins 1104A series engines
Direct Injection Perkins Diesel Engine: 1104D-44T Maximum Power ISO (kW): 61-75 Net PTO Power ISO (kW): 58-67 Rated Speed (rpm):2200 Maximum Torque (Nm): 352-416 Maximum Torque Speed (rpm):1400 Mechanical Fuel Injection, Turbo, Inter Cooled: STD Bore/Stroke: (105/127) Displacement/No. of Cylinders (cm³): (4400/4) Water Cooling: STD

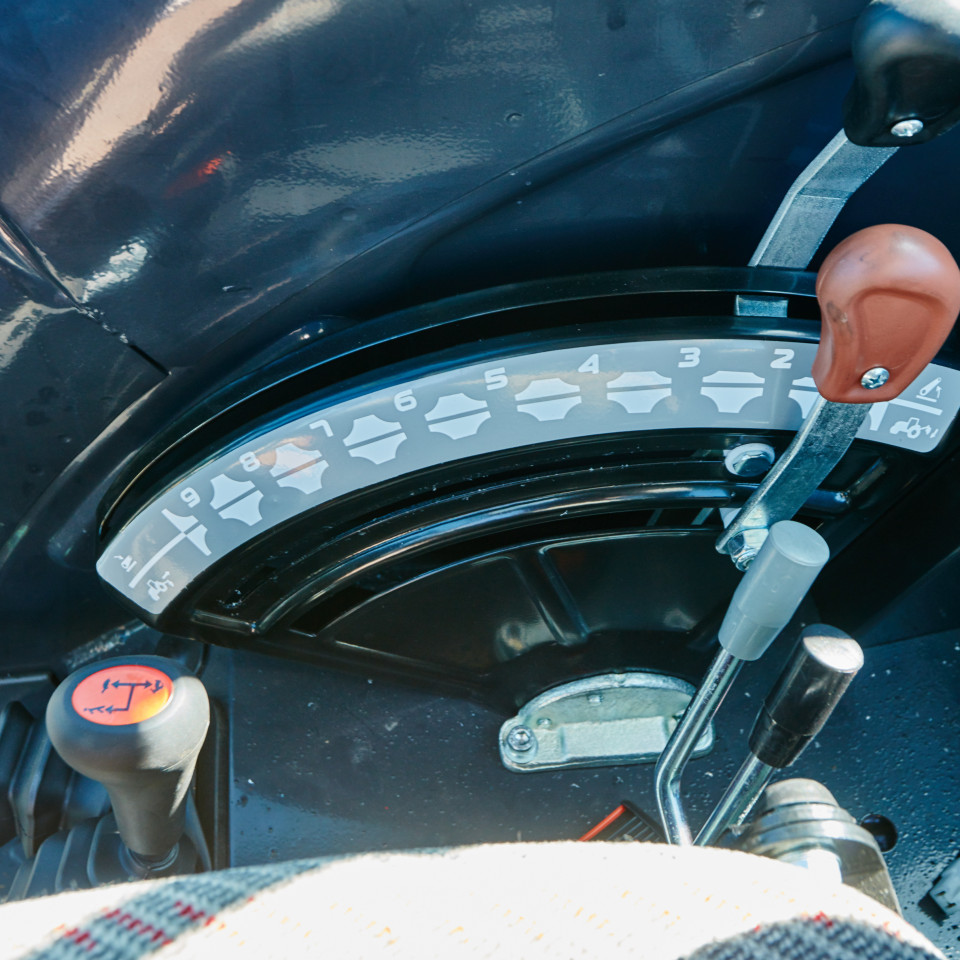

Transmission
Super 90/100/110 Basic Gearbox = Shuttle 12 FWD + 12 REV = STD Rear Mechanical Diff. Lock = STD
Hydraulic System

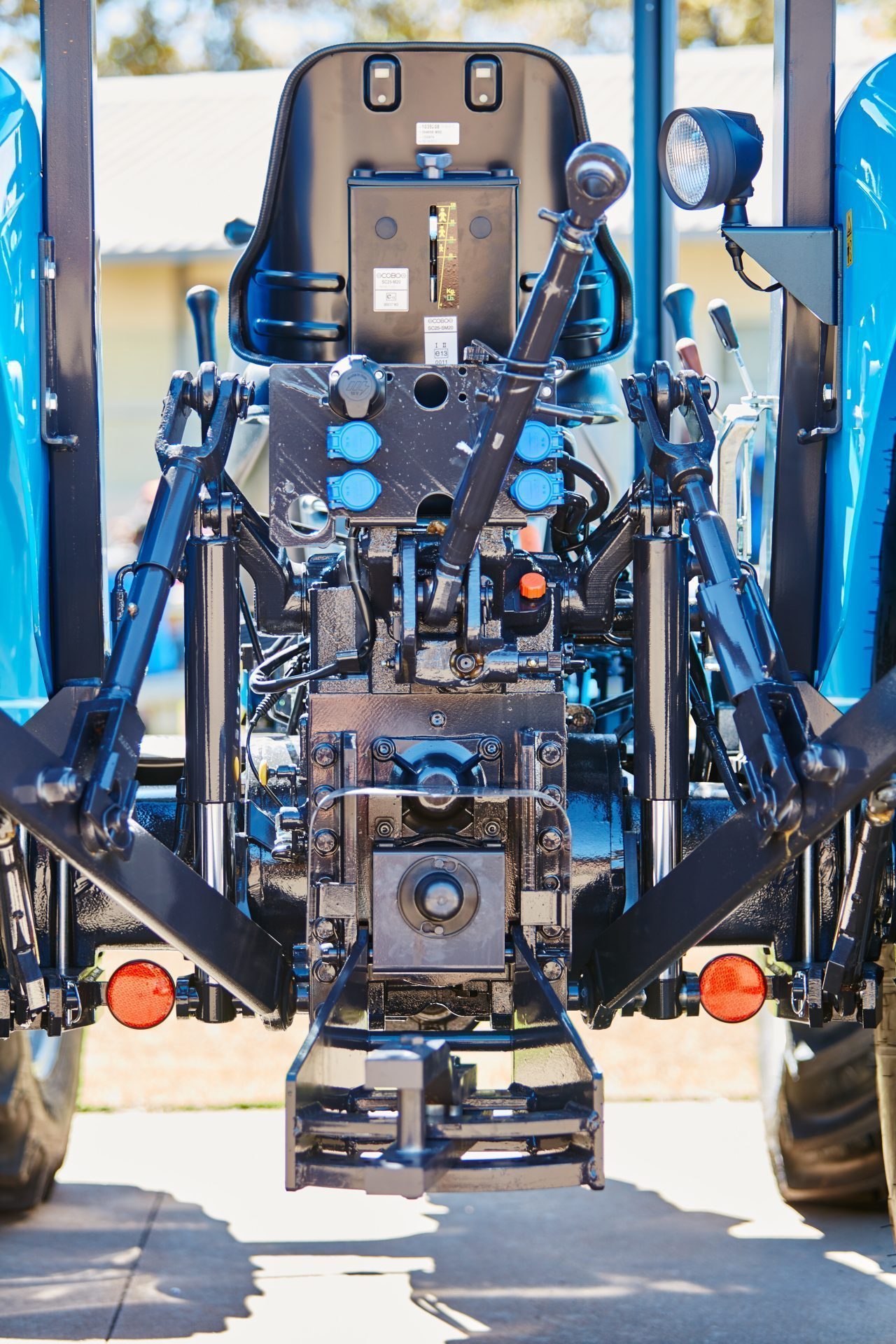

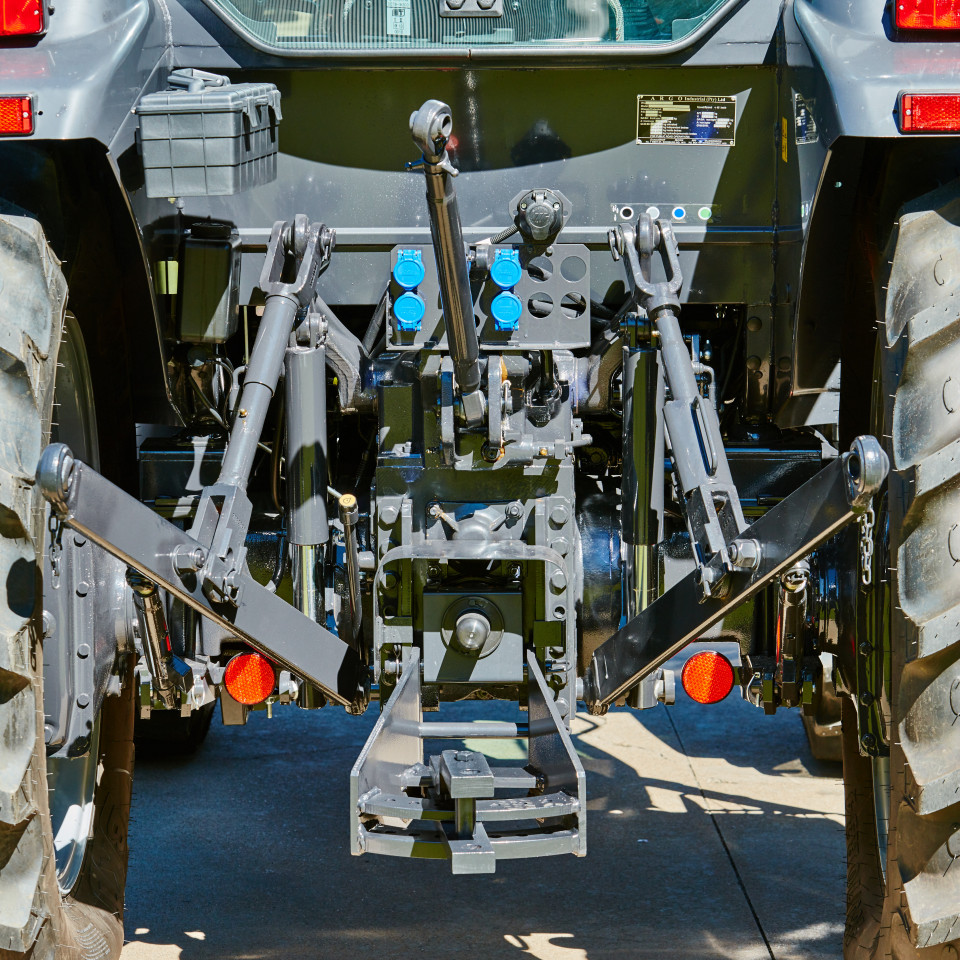

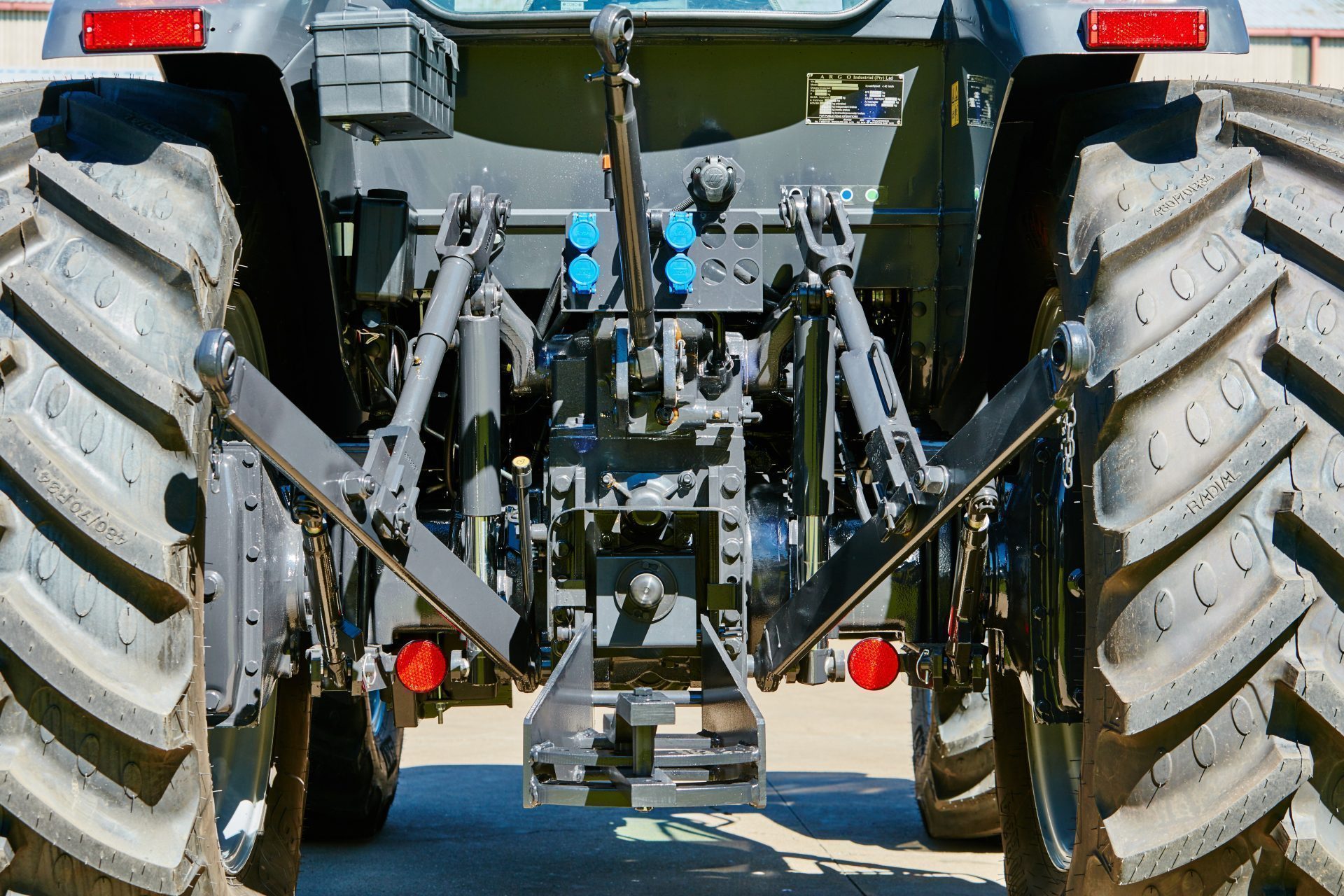

Super 90/100/110 Mechanically operated = STD Position, Draft and Control Functions = STD Lifting capacity with 2 cylinders = 3700 Hydraulic pump delivery + Steering = 53+28 3-Point linkage = STD Auxiliary Hydraulic Valves = STD
WEIGHTS & DIMENSIONS
| Super 90 | Super 100 | Super 110 | |
|---|---|---|---|
| Length Without Ballast (mm) | 4111 | 4135 | 4135 |
| Height (mm) | 2560 | 2610 | 2610 |
| Height Over Safety Frame (mm) | 3150 | 3150 | 3150 |
| Maximum Ground Clearance (mm) | 390 | 400 | 400 |
| Weight Without Ballast 4WD (kg) | 3300 | 3300 | 3300 |
