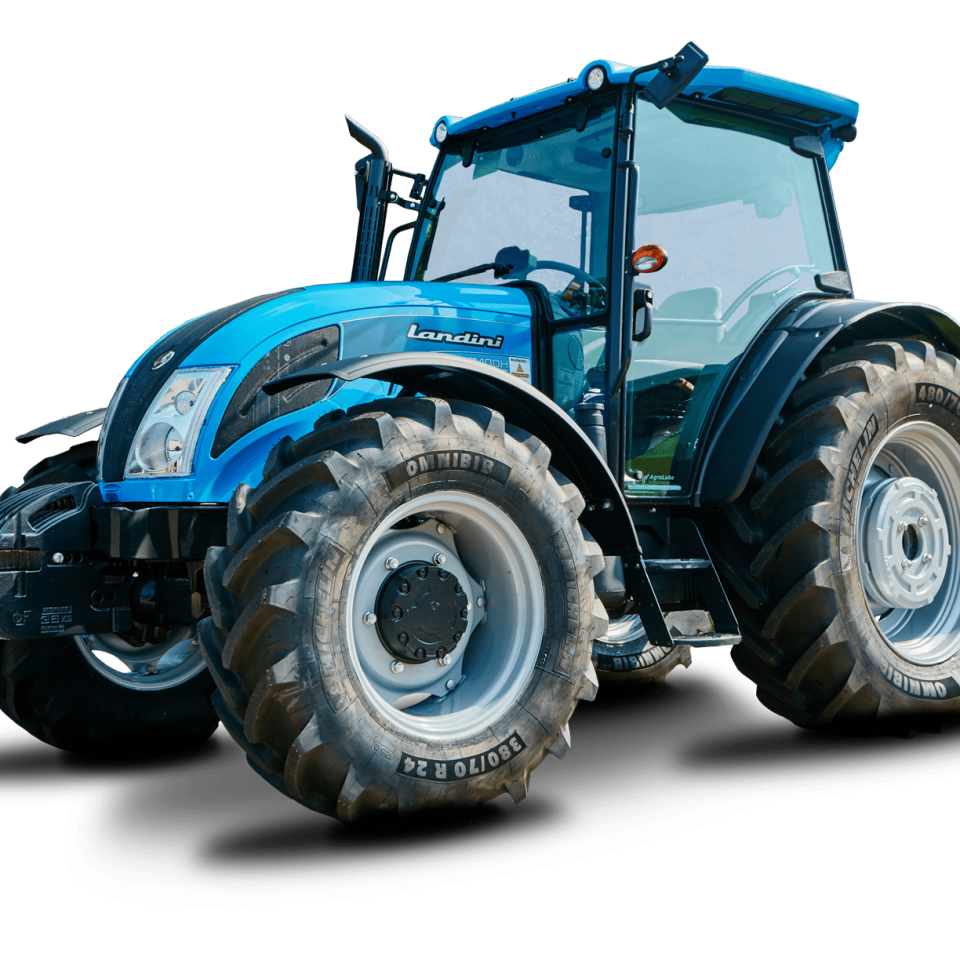

Landini 5H Series

100 - 110

Main features

CYLINDERS
4
POWER
68, 75
TRANSMISSION
Power Shuttle,Power Shift

TECHNOLOGICAL EVOLUTION

The 5H Series engine hood has been restyled to reflect the Landini family feeling and taillights are a new design. The modular and versatile transmission is available with four synchronized gears and three mechanical speed ranges (SPEED FOUR) with hydraulically controlled oil-bath multi-plate PTO as a basic version. A substantial novelty is represented by the combination of the hydraulic reverse shuttle with the T Tronic three-shift (H-M-L High-Medium-Low) which allows the transmission to achieve 36 forward + 12 reverse speed. A creep transmission is available as an option. The top version is equipped with a De-Clutch system allowing the operator to change mechanical gears by simply depressing the button placed on the gear shift lever without using the clutch pedal. The De-Clutch system is engaged by an electronic control unit, the same one controlling the hydraulic reverse shuttle, the T Tronic H-M-L gearbox and the PTO. The PTO comes with 2 speeds – 540 and 1000 rpm. The E.L.S mechanical power lift is equipped with draft control function on the lower links. With the adoption of the new hood, the range of engines powering the 5H Series has been enhanced with a new, more powerful model that delivers 75 kW. With this latest addition. The 5H tractor range have two models: The turbo aftercooled models, the 100 and 110 all meeting the Tier 3 emission standards. The new 5H Series is available both in Cab and Platform versions and represents the Landini technological innovation and featuring the essence of modernity.

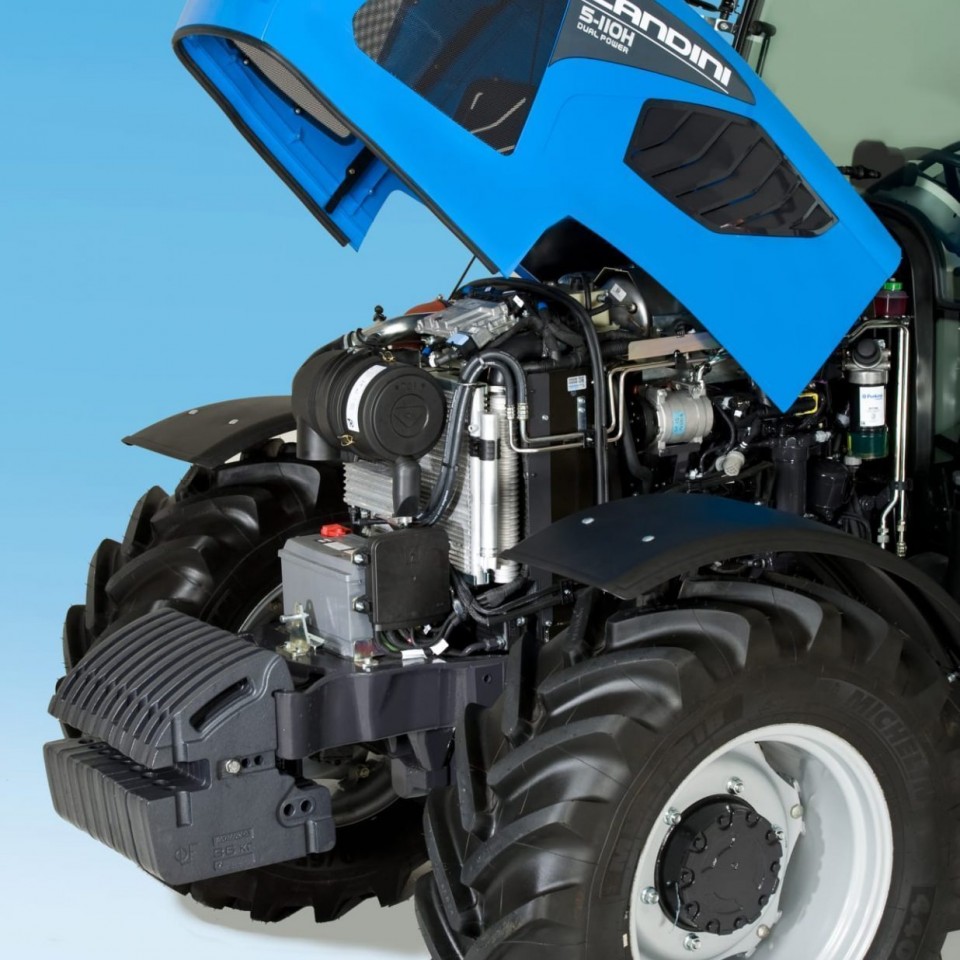

PERKINS TIER 3 1104D

Direct Injection Perkins Engine1104D-44TA1104D-44TA
Maximum Power ISO (kW)6875
Rated Speed (rpm)22002200
Maximum Torque (Nm)393416
Maximum Torque Speed (rpm)14001400
Bore/Stroke (mm)105/127105/127
No. of Cylinders44
Water CoolingSTDSTD
Air Filter Dry TypeSTDSTD
Fuel Tank Capacity (ltr)102102

TRANSMISSION and POWER TAKE OFF

5H-1005H-110
Reverse Power Shuttle with Elctronic Modulation
with De-Clutch button
STDSTD
3 Power Shift Gears in each Synchro Gear,
also Electronically Modulated
STDSTD
POWER TAKE OFF
Electro-Hydraulic EngagementSTDSTD
Speeds 540/100 (rpm) with Ground speedSTDSTD

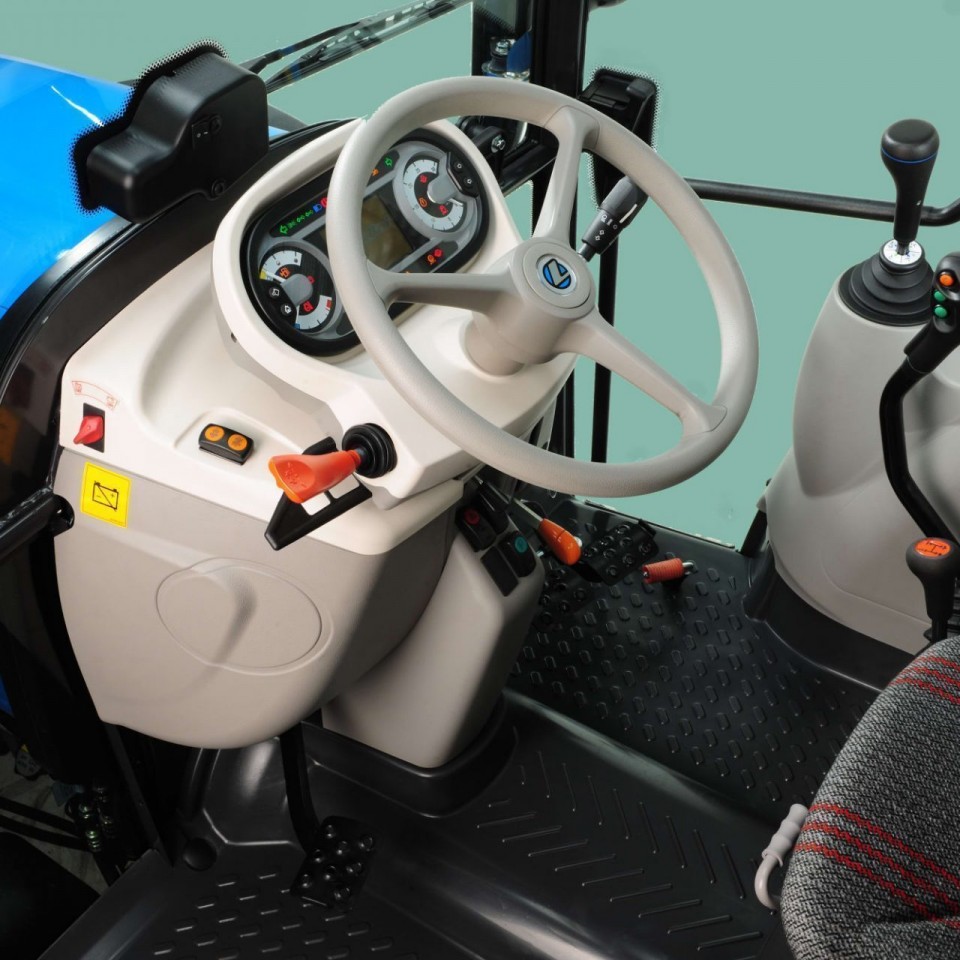

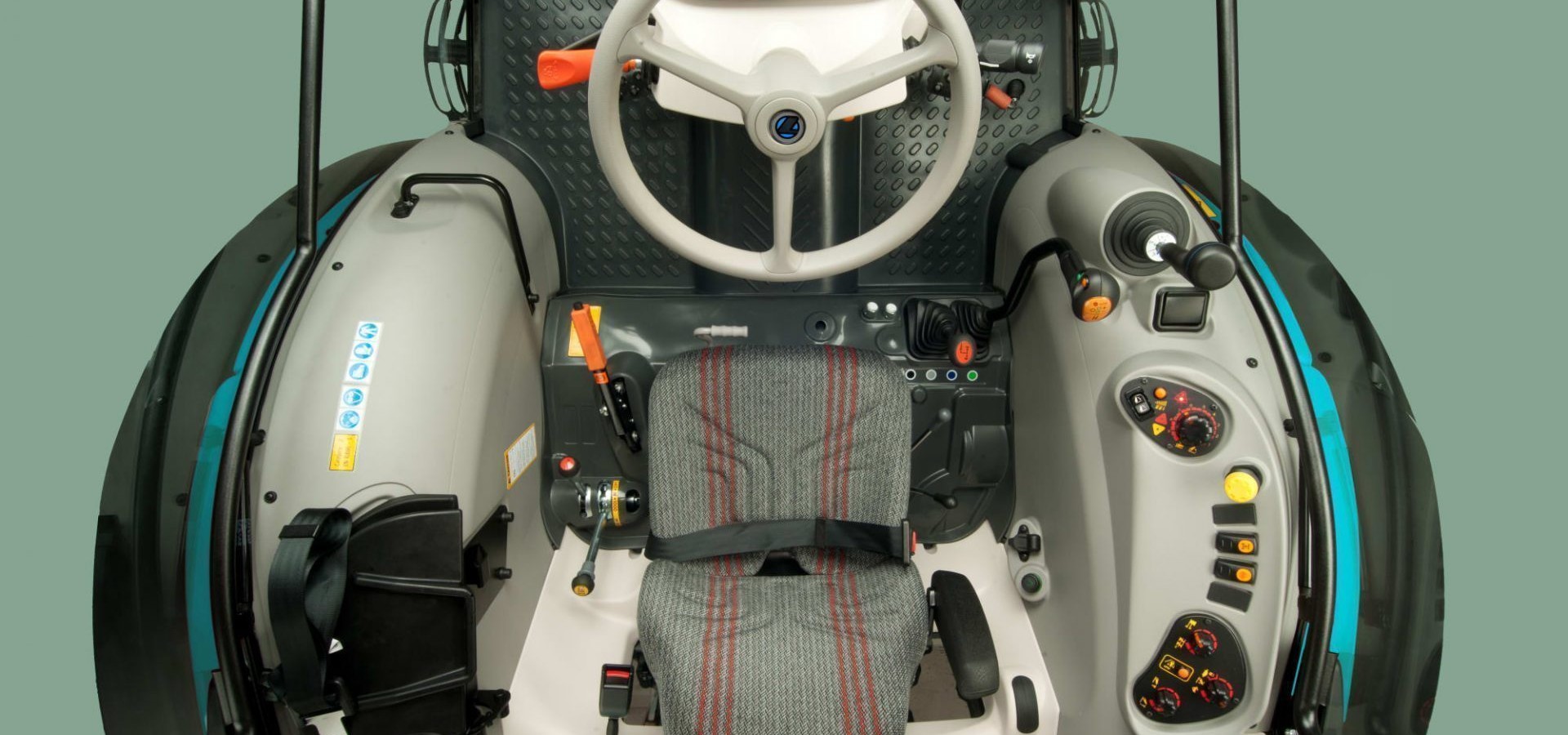

OPERATORS LAYOUT

5H-1005H-110
Analog Control Panel – ProgrammableSTDSTD
Silent Block Mounted Platform with ROPS plus RoofSTDSTD
Silent Block Mounted Cab with Air-ConditioningSTDSTD

HYDRAULIC POWER LIFT

5H-1005H-110
Functions: Position, Draft, Intermix and
Floating Function Mechanical Operated
STDSTD
ELS: Ergonomic Lifting System Height Limit ControlSTDSTD
Standard Lifting Power with 2 Additional Auxiliary Cylinders (kg)42004200
Open Circuit Hydraulic Pump Delivery (ltr/min)5353
CAT II Three-Point Linkage (Quick Hitch Type)STDSTD
Standard Auxiliary Valves22

DIMENSIONS & WEIGHTS

5H-1005H-110
Total Length with Ballast (mm)44284428
Wheelbase 4WD (mm)23162316
Minimum Width (mm)27002700
Maximum Weight without Ballast (kg)
Platform36253625
Cab38503850
