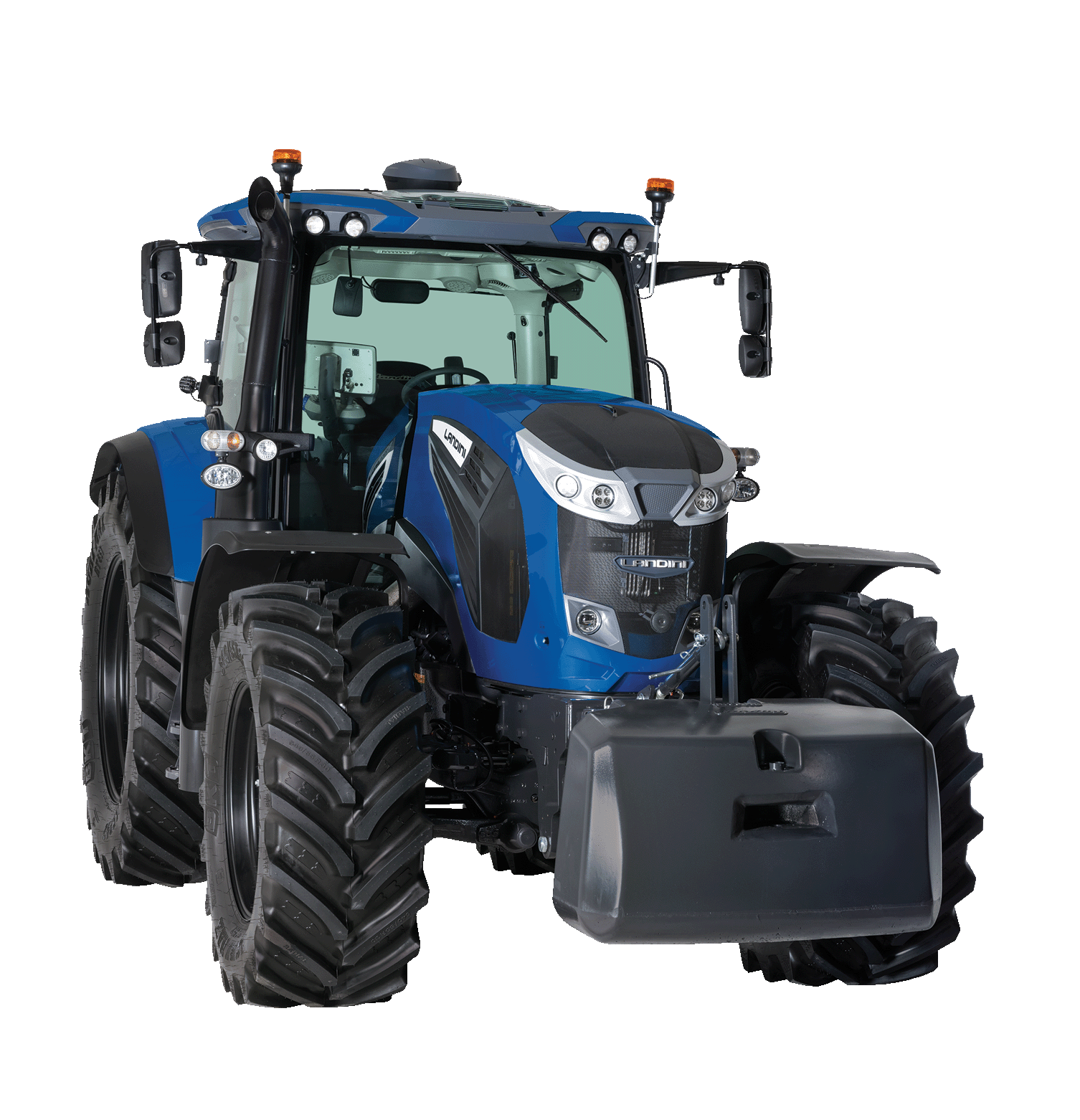

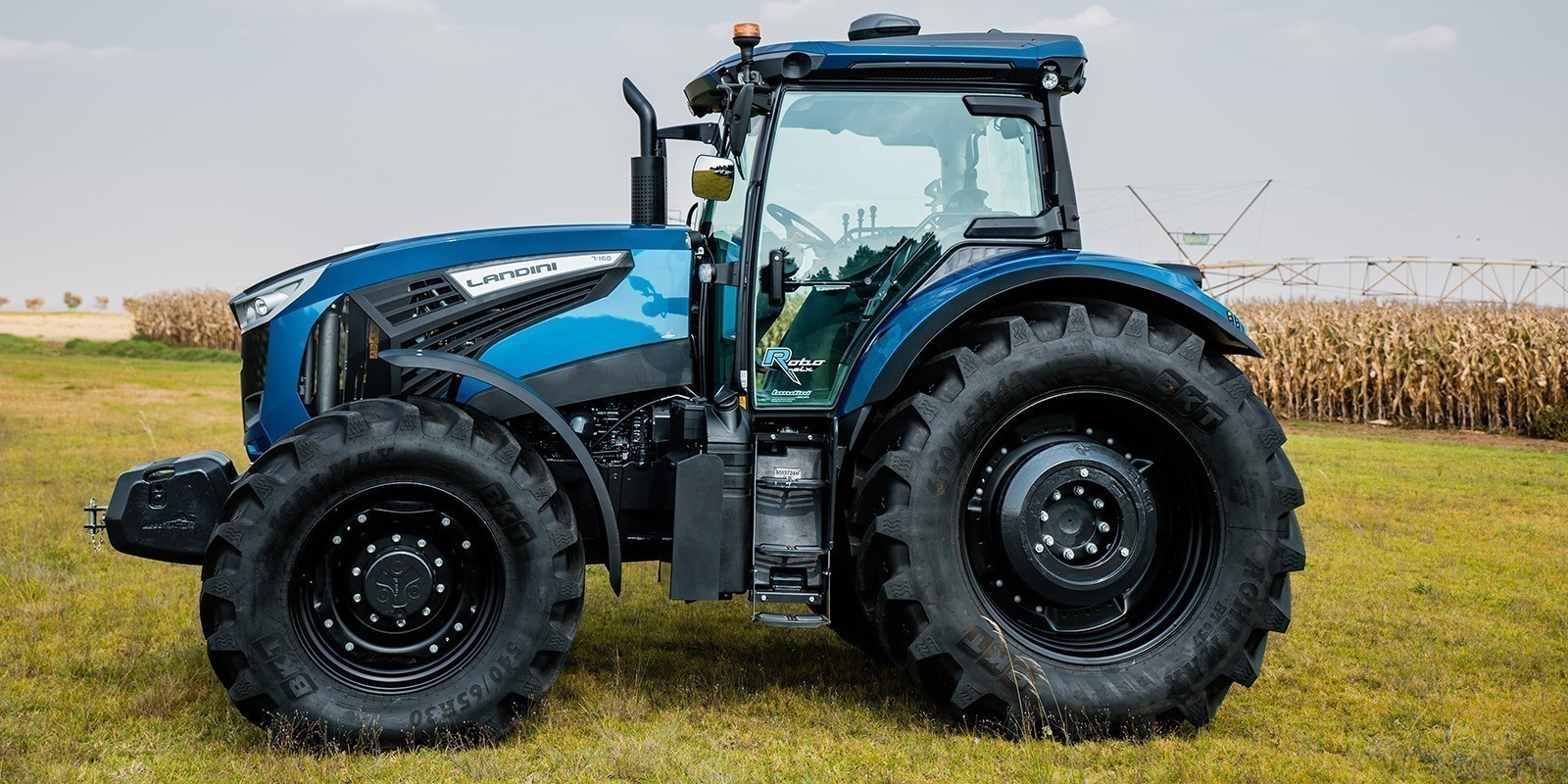

Landini 7-160 Tier 3
NEW LANDINI 7-160 ALL ROUND INNOVATION
Engine
6.7 l displacement NEF ENGINE / 6
Power
108
Transmission
ROBO SIX TRANSMISSION
FRONT AXLE AND REAR BRAKES
The front axle is equipped with full hydraulic locking differential and electro hydraulic four-wheel drive engagement ensuring maximum efficiency and safety on all terrains. High capacity wet multi-disc rear axle brakes ensure safe controlled stopping power. Also when braking, the fourwheel drive engages automatically, which in turn brakes the front axle for efficient braking on all four wheels. All X7.6 tractors are equipped with brake power boosting system to reduce the effort required by the operator while improving driving accuracy. The 7 160 is also equipped with integrated hydraulic trailer brakes
EFFICIENT CAB 7 160 SERIES
The Cab layout of the 7 series range of tractors is a true technology lounge that allows the operator to control the tractor with maximum ease and comfort. Designed to offer the operator a safe, quiet and comfortable environment for long hours in the field. The four-post cab is packed with a host of features including a flat deck platform, air suspension seat and a telescopic tilt-adjustable steering wheel. The Landini 7.160 cab layout differs from the bigger models. The original multi-function electronic control on the armrest of the seat has now been moved to the side panel. The transmission control function now on the side panel still supply the normal functions because the transmission on all the 7 Series models stay the same.
ROBO SIX TRANSMISSION
With the engine located within a chassis and the rugged front axle with independent wheels, the 7 Series is the tractor that transfers more power to the ground in its class. The 7 Series offers outstanding traction and excellent manoeuvrability ensuring optimum grip and stability for superior driving comfort in the field and on the road. This is all complemented by a powershift transmission that offers 30 forward ratios and 15 reverse ratios as a standard feature . The speed matching feature allows gear changes to be smooth and all of these features ensure an increase in productivity and efficiency for the end user.
HYDRAULICS AND 3-POINT LINKAGE
Designed to provide high flow capacity, the closed centre hydraulic system on this tractor delivers 125l/min through a variable displacement pump. All of this oil flow is dedicated to the rear 3-point linkage and hydraulic remotes. There are four hydraulic remote valves at the rear of the tractor one of the hydraulic remotes is electrically controlled off the multifunctional control lever and the other three are mechanically controlled all from the inside of the cab.
The 3-point linkage is electronically operated and has a lifting capacity of 6 300 kg.
Dimensions and Weights
|
|
7-160 |
|
Front Tyres |
540/65R28 |
|
Rear Tyres |
650/65R38 |
|
Max Weight with Ballast |
5 260 |
|
Min Width |
2 430 |
|
Wheelbase |
2 820 |
|
Height over Cab |
2 920 |
