Landforce 115/125

Landforce 115/125

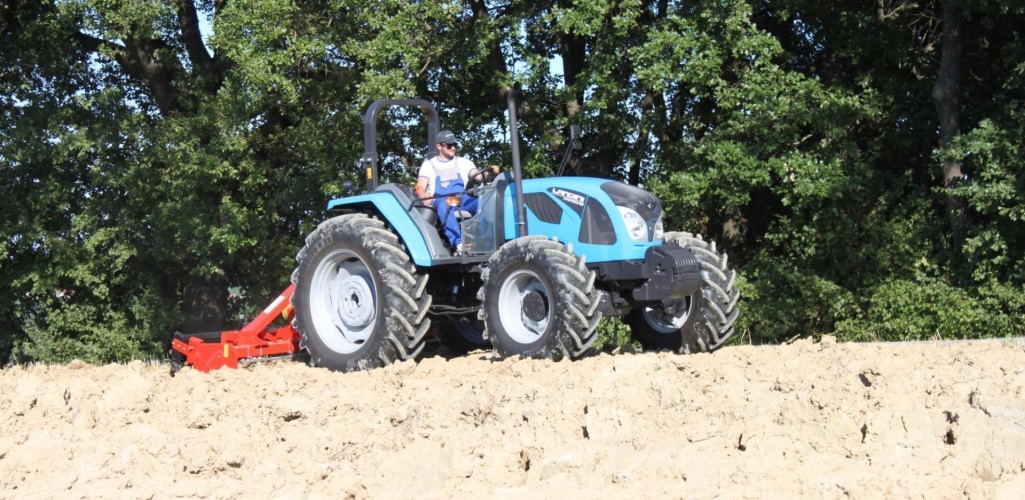

Landforce Series, Landini’s utility tractor for the global market

Engine

4500 / 4

Power

120

Transmission

Synchro Shuttle

MASTER CLASS CAB FOR SUPERIOR VISIBILITY AND COMFORT

Featuring a four-post design with large, rear hinged doors, the Master Class cab provides exceptional all-round visibility and allows the operator to enter and exit with ease. The interior is fully sound-insulated and equipped with an efficient air-conditioning system that creates a comfortable work environment for long hours in the field. The driving position with ergonomically-arranged controls, sprung seat and adjustable steering wheel further enhances the operator comfort. An opening roof hatch offers extra visibility for loader operations and six powerful halogen lights provide excellent illumination for night work. Also the version with iso-mounted platform comes with sprung seat, adjustable steering wheel and ergonomic controls for maximum operator comfort. The two-post ROPS can be optionally fitted with a sun canopy.

FPT NEF4-2V TIER 3 ENGINES

The Landforce 125 model feature new FPT NEF4-2V 4.5-liter, 4-cylinder, direct-injection turbo engines with 120 hp. The turbocharger delivers optimum boost pressure across all speed ranges and the EGR system, combined with the aftercooler, enables these engines to meet the Tier 3 emission regulations. The cooling system is protected by a set of easy-access, easy-clean filters. For operation in hot and dusty environments, a special filter can be fitted. The Landforce tractor features a 48-gallon (180-liter) fuel tank for long working days without refuelling. A large, easily accessible filler neck allows for easy filling. The tilt-up hood opens wide to provide easy access to the engine compartment for routine service and maintenance.

MAX. POWER (ISO)  KW

115/125 = 82/88

RATED SPEED  RPM

2200

MAX. TORQUE   LB. (NM)

115/125 = 510/515

MAX. TORQUE SPEED  RPM

1300

DISPLACEMENT / CYLINDERS   CU. IN. (CM3)

4500/4

WATER COOLING

Standard

DRY AIR FILTER

Standard

FUEL TANK CAPACITY  (LT)

180



T-TRONIC ELECTROHYDRAULIC TRANSMISSION WITH DE-CLUTCH CONTROL AND POWER SHUTTLE

The Landforce series features a versatile modular transmission (Speed Four) with four synchronized gears in three ranges and a mechanical reverse shuttle lever adjacent to the steering wheel that provide 12 speeds forward and 12 reverse. Optionally, the tractor can be fitted with an electronically-controlled T-Tronic transmission. This offers a three-stage powershift (H-M-L) that can be shifted on the go using the green buttons integrated into the gear lever and an electrohydraulic power shuttle providing 36 forward and 12 reverse speeds. In addition, available for both configurations is a creep transmission that provides a wide range of creep speeds from to 0.25 mph (0.400 km/h). The De-clutch control (orange button integrated into the gear lever) and the left hand steering-column power shuttle allow the operator to easily shift through all gears and change from forward to reverse without using the clutch pedal. A shuttle modulation control (potentiometer L) integrated into the right-hand console allows for adjustment of the power shuttle response to suit implement used and soil conditions.

DIMENSIONS AND WEIGHTS

Landforce 115 & 125
Rear tyres16.9 R38
Length with ballast   in. (mm)187 (4755)
Wheelbase 4WD   in. (mm)100 (2540)
Ground clearance 4WD    in. (mm)14.5 (370)
Height to safety frame     in. (mm)109 (2780)
Min. width     in. (mm)83.5 (2100)
Weight (without ballast) 4WD   lb. (Kg)9240 (4200)
