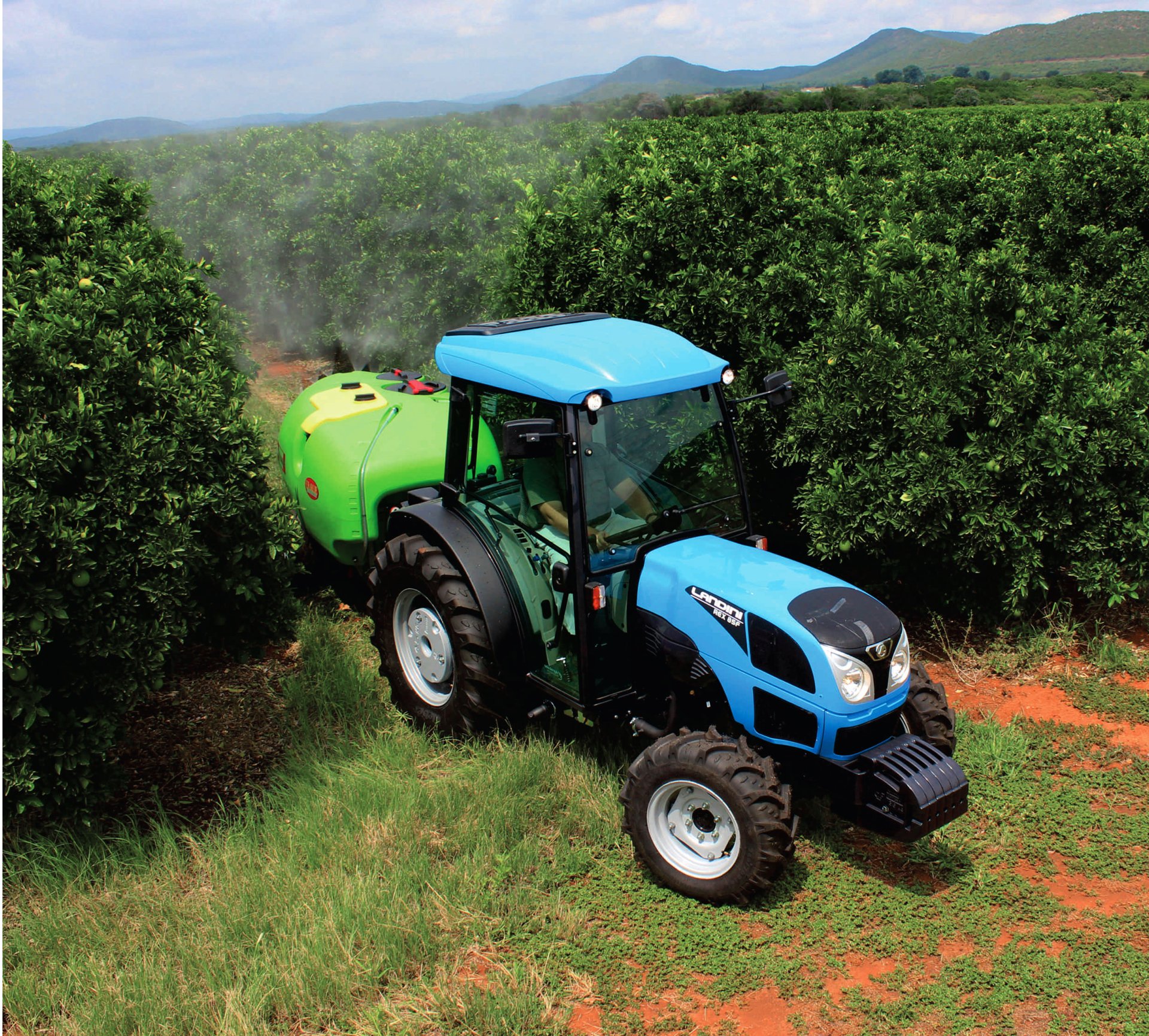

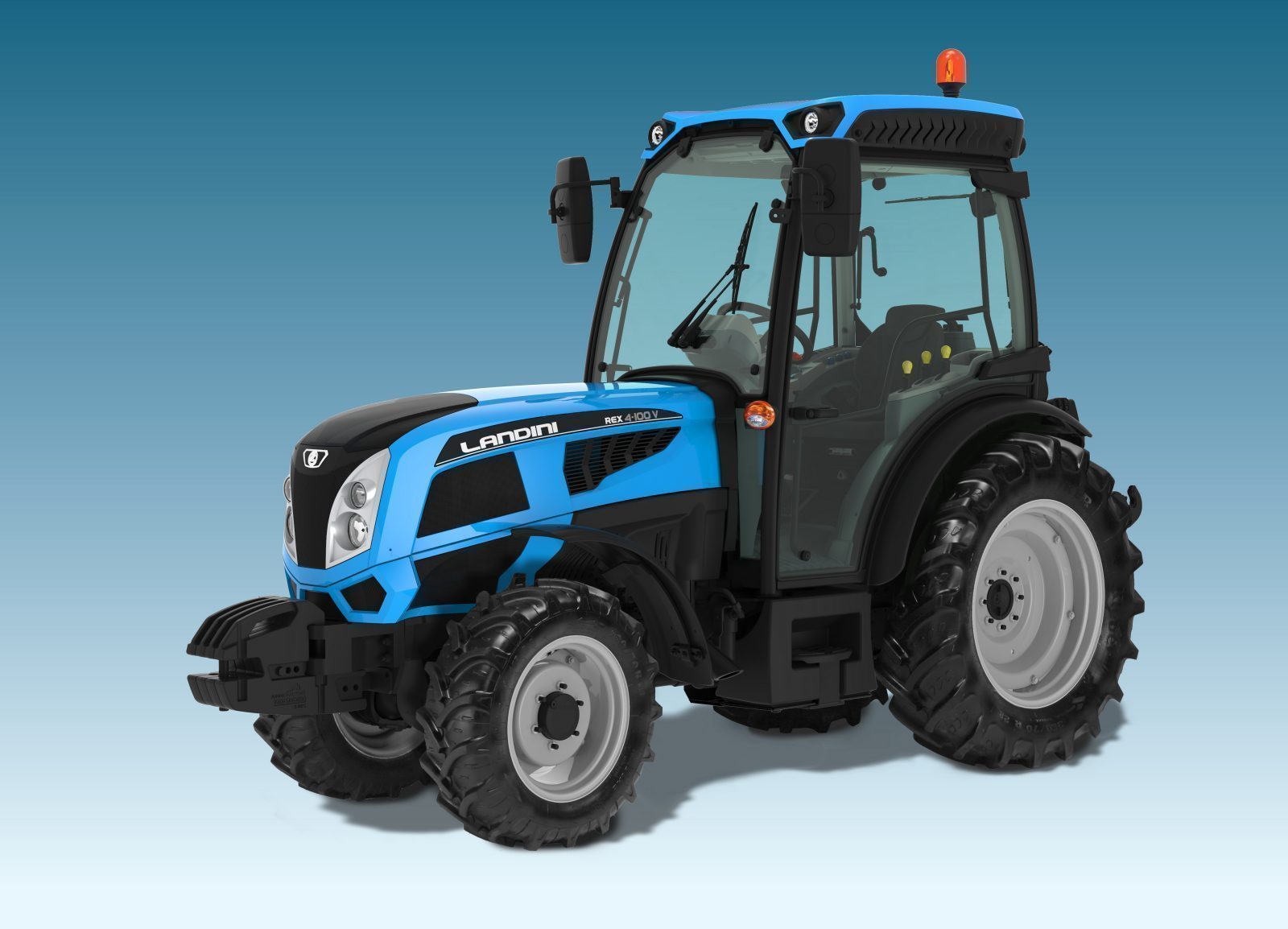

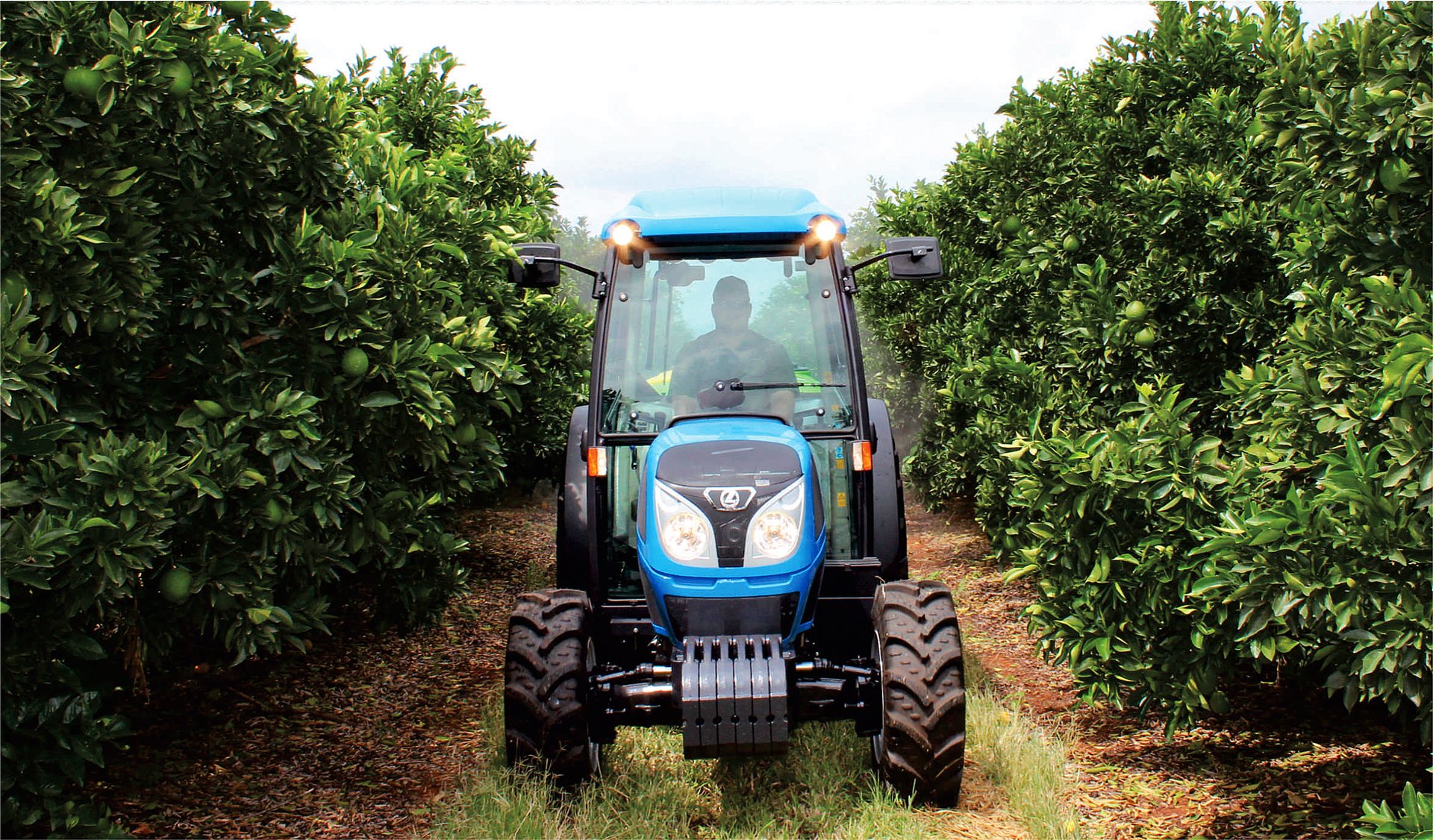

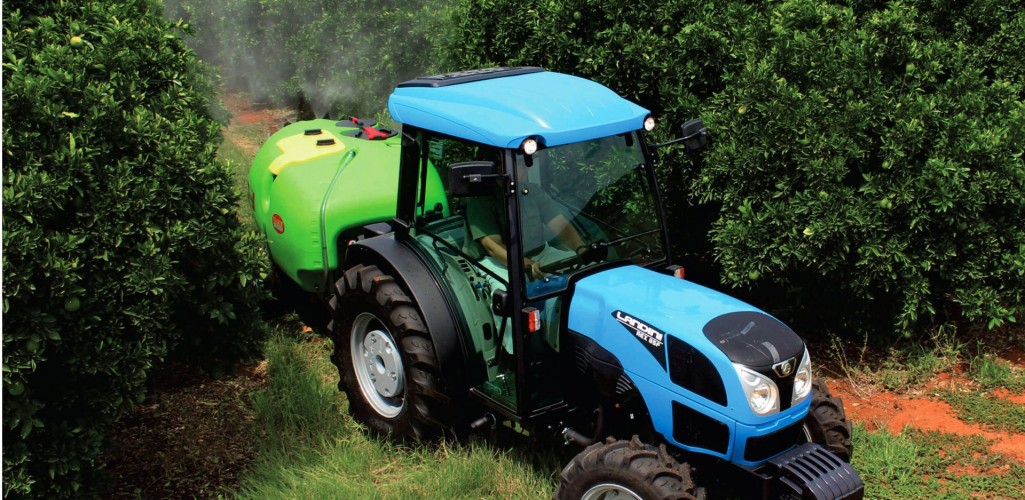

Landini Rex Orchard 75/85 Techno
SCOPRI LO SHOP
Landini Rex Orchard 75/85 Techno
The True Specialist
Engine
4400 / 4
Power
51, 60
Transmission
Mechanical Shuttle
Platform and Cab Models
The driving seat is mounted on an ample and comfortable platform and equipped with ergonomically arranged controls. The adjustable seat, hydraulic- and height adjustable steering wheel further improve the comfort. The platform models are fitted with a foldable two-post ROPS and soft mudguard sides to make work in low orchards easier. The Cab models are fitted with two side doors for easy entrance and exit and front and rear windows can be opened. The spacious Cab offers an air-conditioned- low noise environment and maximum operators safety and comfort during normal or spraying operations.
| Rex 75F | Rex 85F | |
|---|---|---|
| Platform | STD | STD |
| Cab + Air-conditioning | STD | STD |
| Digital instruments | STD | STD |
Perkins 1004C (Tier 3) 4 cylinder
The Landini Orchard range is fitted with the new Perkins 1104C-44 (75F and 85F), 4 cylinder direct-injection engines compliant with Tier3 environment standards. The engine offer high torque back-up, improved fuel efficiency, low noise levels and reduced emissions.
REX 75F & REX 85F Perkins Tier 3 direct-injection engine : 1104C-44 Max power (kW) : REX 75F (51) REX 85F (60) Rated speed (rpm) : 2200 Max Torque [Nm]: REX 75F (273) REX 85F (292) Fuel tank capacity Std+Opt (lt) : 43 + 25
Transmission
Basic transmission with shuttle and optional creeper allows for effortless operation and offer a choice of specific operations. REX 75F & REX 85F STD : 12 Fwd + 12 Rev + Mechanical shuttle (2WD and 4WD) OPT: Creeper
Hydraulics
The mechanical power lift with controls located in comfortable and ergonomic position on the driver's right, incorporates all main functions and regulations, offering maximum comfort and fingertip control of implements. Equipped with Cat.II three-point linkage the power lift ensures a maximum lifting capacity of 2600 kg. Rex 75F & Rex 85F STD: Position-, draft-, intermix-, and floating control 2600: Standard lifting power (kg) 53/30: Hydraulic pump delivery / Power lift + Steering (ltr) STD: Cat.II three-point linkage 2: Auxiliary valves
Dimensions and Weights
| Tyres, Wheels & Dimensions | 75F | 85F |
| Min Width with Fenders (mm) | 1319 | 1319 |
| Max Ground Clearance 4WD (mm) | 265 | 265 |
| Wheelbase 2WD/4 WD (mm) | 2065/2017 | 2065/2017 |
| Heigth to ROPS (mm) | 2186 | 2186 |
| Height over CAB (mm) | 2250 | 2250 |
| 2WD Front | 600x16 | 600x16 |
| 4WD Front | 280/70 R16 | 280/70 R16 |
| 2WD Rear | 380/70R34 | 420/70R24 |
| 4WD Rear | 420/70R24 | 420/70R24 |
